Lite-On Inc. LTL-4223
- Part No.:
- LTL-4223
- Manufacturer:
- Lite-On Inc.
- Category:
- LED Indication - Discrete
- Package:
- Radial
- Datasheet:
-
LTL-4223.pdf
- Description:
- LED RED DIFFUSED T-1 3/4 T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LTL-4223 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lite-On Inc.
- Series:
- -
- Package/Case:
- Radial
- Packaging:
- Bulk
- Product Status:
- Active
- Color:
- Red
- Configuration:
- Standard
- Lens Color:
- Red
- Lens Transparency:
- Diffused
- Millicandela Rating:
- 19mcd
- Lens Style:
- Round with Domed Top
- Lens Size:
- 5mm, T-1 3/4
- Voltage - Forward (Vf) (Typ):
- 2V
- Current - Test:
- 10mA
- Viewing Angle:
- 36°
- Mounting Type:
- Through Hole
- Wavelength - Dominant:
- 623nm
- Wavelength - Peak:
- 635nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- T-1 3/4
- Size / Dimension:
- -
| Image |  |
 |
 |
 |
 |

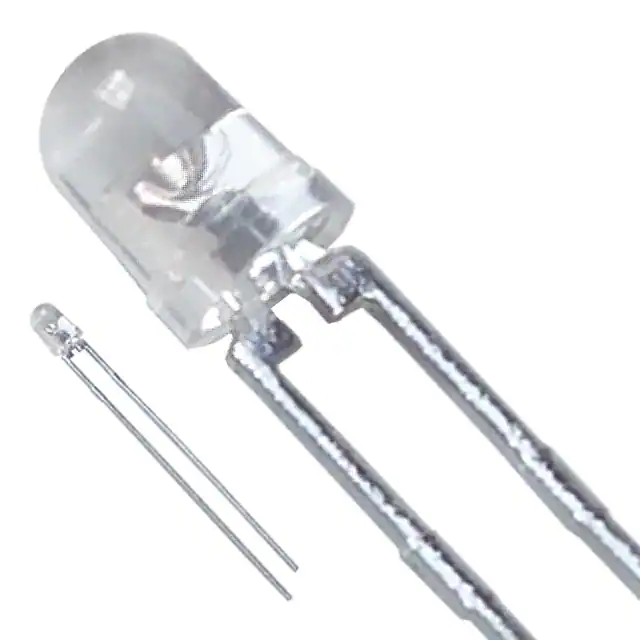

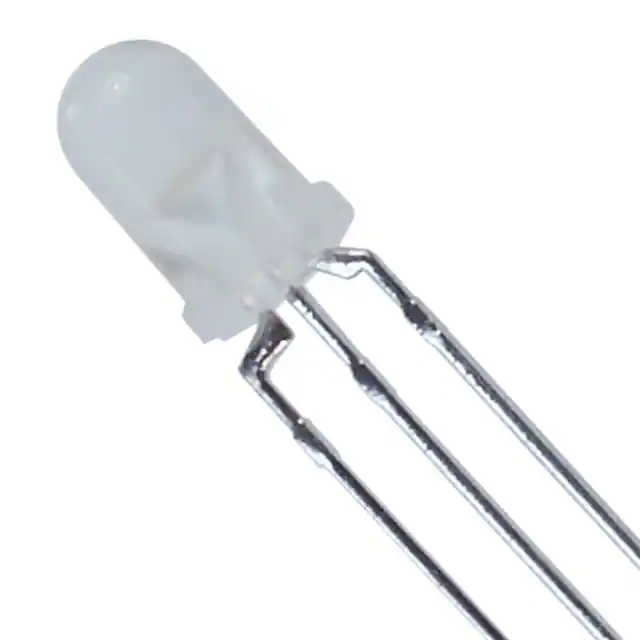

| Part Number | LTL1CHKRKNN | LTL-4233 | LTL-4223 | LTL1BEKVJNN | LTL-4266N |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Series | - | - | - | - | - |
| Package/Case | Radial | Radial | Radial | Radial - 3 Leads | Radial |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Green | Red | Green, Red | Red |
| Configuration | Standard | Standard | Standard | Common Cathode | Standard |
| Lens Color | Colorless | Green | Red | White | Colorless |
| Lens Transparency | Clear | Diffused | Diffused | Diffused | Clear |
| Millicandela Rating | 400mcd | 19mcd | 19mcd | 110mcd Green, 110mcd Red | 170mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 3.10mm Dia | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 3.00mm Dia | 3.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V | 2.1V | 2V | 2.1V Green, 2V Red | 1.8V |
| Current - Test | 20mA | 10mA | 10mA | 20mA Green, 20mA Red | 20mA |
| Viewing Angle | 45° | 36° | 36° | 45° | 45° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 631nm | 569nm | 623nm | 572nm Green, 631nm Red | 638nm |
| Wavelength - Peak | 639nm | 565nm | 635nm | 575nm Green, 639nm Red | 660nm |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | T-1 | T-1 3/4 | T-1 3/4 | - | T-1 |
| Size / Dimension | - | - | - | - | - |
