TE Connectivity Passive Product LR1F22R
- Part No.:
- LR1F22R
- Manufacturer:
- TE Connectivity Passive Product
- Category:
- Through Hole Resistors
- Package:
- Axial
- Datasheet:
-
LR1F22R.pdf
- Description:
- RES 22 OHM 1% 0.6W AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LR1F22R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Passive Product
- Series:
- LR, Neohm
- Packaging:
- Cut Tape (CT)
- Product Status:
- Active
- Resistance:
- 22 Ohms
- Tolerance:
- ±1%
- Power (Watts):
- 0.6W
- Composition:
- Metal Film
- Features:
- -
- Temperature Coefficient:
- ±50ppm/°C
- Operating Temperature:
- -55°C ~ 155°C
- Supplier Device Package:
- Axial
- Size / Dimension:
- 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
- Height - Seated (Max):
- -
- Number of Terminations:
- 2
- Failure Rate:
- -

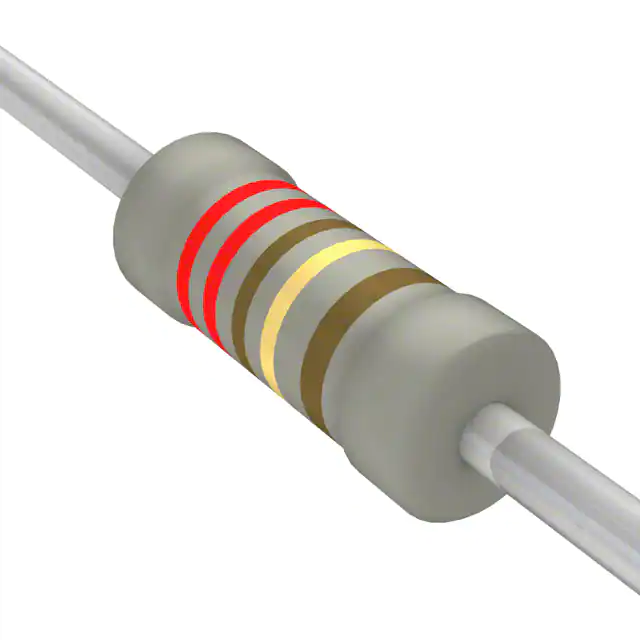

| Image |  |
 |
| Part Number | LR1F22R | LR1F22R1 |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Series | LR, Neohm | LR, Neohm |
| Packaging | Cut Tape (CT) | Tape & Box (TB) |
| Product Status | Active | Active |
| Resistance | 22 Ohms | 22.1 Ohms |
| Tolerance | ±1% | ±1% |
| Power (Watts) | 0.6W | 0.6W |
| Composition | Metal Film | Metal Film |
| Features | - | - |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Supplier Device Package | Axial | Axial |
| Size / Dimension | 0.091" Dia x 0.244" L (2.30mm x 6.20mm) | 0.091" Dia x 0.244" L (2.30mm x 6.20mm) |
| Height - Seated (Max) | - | - |
| Number of Terminations | 2 | 2 |
| Failure Rate | - | - |
