Taoglas Limited LPDA.03.032111
- Part No.:
- LPDA.03.032111
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Description:
- ENGAGER LPDA.03 EXTERNAL WIDE BA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LPDA.03.032111 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Family/Standard:
- Cellular, WiFi
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 829MHz, 1.85GHz, 1.962GHz, 2.332GHz, 2.45GHz, 2.6GHz, 3.5GHz, 5.8GHz
- Frequency Range:
- 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.305GHz ~ 2.36GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 5.7GHz ~ 5.9GHz
- Antenna Type:
- Module
- Number of Bands:
- 8
- VSWR:
- 2, 3
- Return Loss:
- -10dB, -6dB
- Gain:
- 7dBi, 7dBi, 7dBi, 6dBi, 5.5dBi, 5dBi, 2.5dBi
- Power - Max:
- 10 W
- Features:
- Cable - 300mm
- Termination:
- SMA Male
- Ingress Protection:
- IP65
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Bracket Mount
- Height (Max):
- 1.654" (42.00mm)
- Applications:
- DCS, GSM, HSPA, LTE, PCS, UMTS, Wi-Fi
| Image |  |
 |
 |

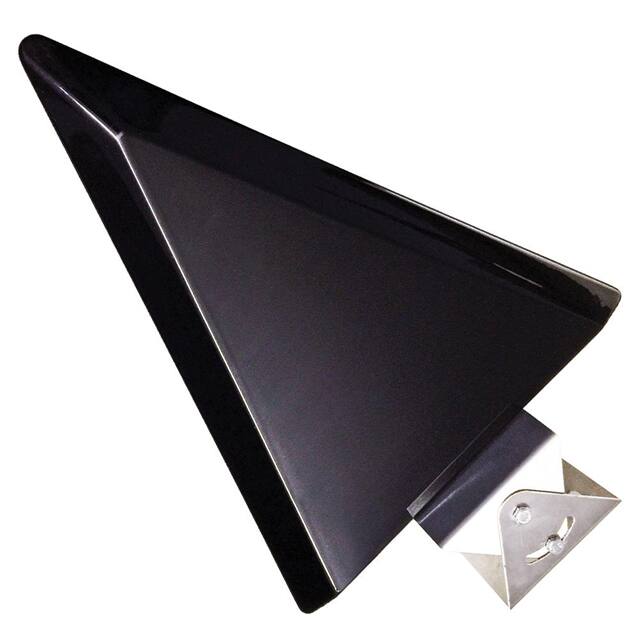

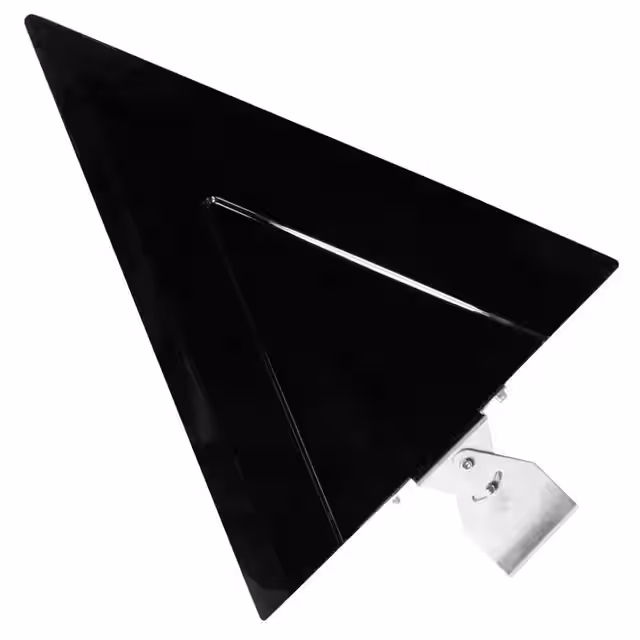

| Part Number | LPDA.02.032111 | LPDA.05.032111 | LPDA.03.032111 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - |
| Packaging | Box | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | Cellular, General ISM, WiFi | - | Cellular, WiFi |
| Frequency Group | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.5GHz | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 829MHz, 1.85GHz, 1.962GHz, 2.332GHz, 2.45GHz, 2.6GHz, 3.5GHz, 5.8GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.305GHz ~ 2.36GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 5.7GHz ~ 5.9GHz |
| Antenna Type | Module | Directional Antenna | Module |
| Number of Bands | 6 | 8 | 8 |
| VSWR | 2, 3 | - | 2, 3 |
| Return Loss | - | - | -10dB, -6dB |
| Gain | 7dBi, 6dBi, 6dBi, 5.5dBi, 5dBi, 5dBi | 7.5dBi, 7.4dBi, 7.4dBi, 8.3dBi, 8.3dBi, 8dBi, 7.9dBi, 6.1dBi | 7dBi, 7dBi, 7dBi, 6dBi, 5.5dBi, 5dBi, 2.5dBi |
| Power - Max | 10 W | 10 W | 10 W |
| Features | Cable - 300mm | Cable - 300mm | Cable - 300mm |
| Termination | SMA Male | SMA Male | SMA Male |
| Ingress Protection | - | IP65 | IP65 |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Bracket Mount | Bracket Mount | Bracket Mount |
| Height (Max) | 1.260" (32.00mm) | 3.740" (95.00mm) | 1.654" (42.00mm) |
| Applications | DCS, GSM, HSPA, LTE, PCS, UMTS, Wi-Fi | - | DCS, GSM, HSPA, LTE, PCS, UMTS, Wi-Fi |
