Switch Components LP1-5-W-A
- Part No.:
- LP1-5-W-A
- Manufacturer:
- Switch Components
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
LP1-5-W-A.pdf
- Description:
- LED INDICATOR 5MM-AMBER, SNAP-IN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LP1-5-W-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Switch Components
- Series:
- LP1
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Yellow
- Lens Color:
- Yellow
- Lens Transparency:
- Clear
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2V
- Current:
- 20mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.32" (8.20mm)
- Lens Size:
- 5.00mm Dia
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 150mcd
- Wavelength - Peak:
- -
- Viewing Angle:
- 15°
- Termination Style:
- Wire Leads - 6.7" (170.0mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
 |

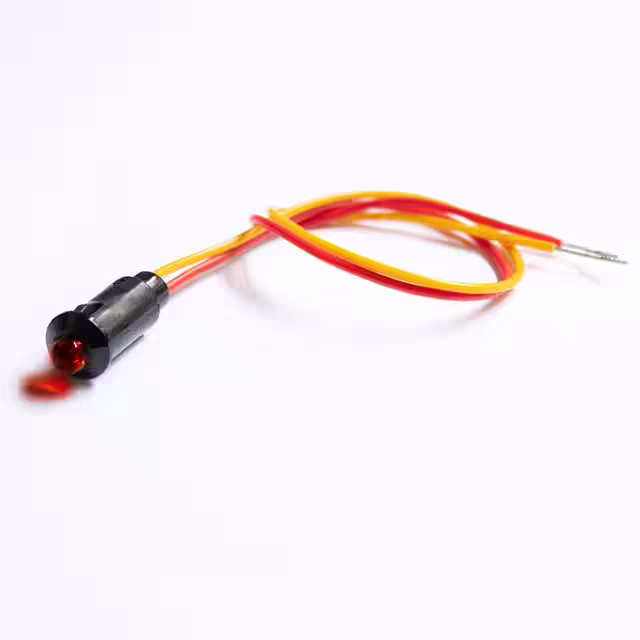

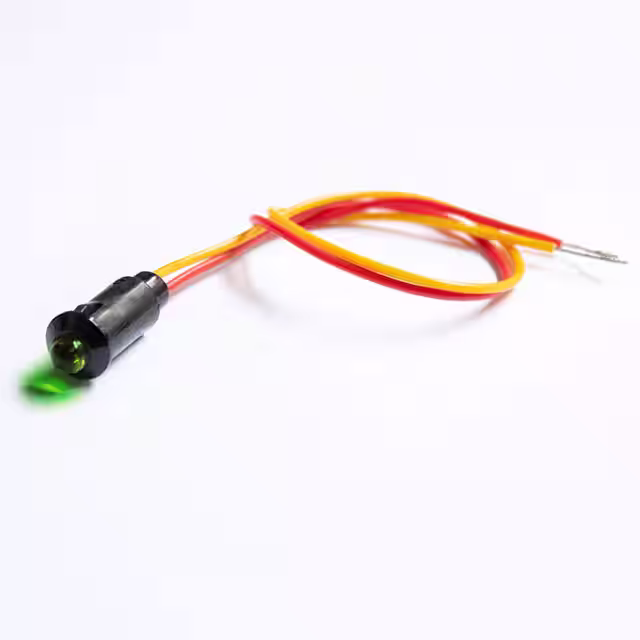

| Part Number | LP1-5-W-R | LP1-5-W-G | LP1-5-W-R-BK | LP1-5-W-A |
| Manufacturer | Switch Components | Switch Components | Switch Components | Switch Components |
| Series | LP1 | LP1 | LP1 | LP1 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | LED | LED | LED | LED |
| Lamp Color | Red | Green | Red | Yellow |
| Lens Color | Red | Green | Red | Yellow |
| Lens Transparency | Diffused | Clear | Diffused | Clear |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2V | 2V | 2V | 2V |
| Current | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.32" (8.20mm) | 0.32" (8.20mm) | 0.32" (8.20mm) | 0.32" (8.20mm) |
| Lens Size | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 350mcd | 250mcd | 350mcd | 150mcd |
| Wavelength - Peak | - | - | - | - |
| Viewing Angle | 25° | 15° | 25° | 15° |
| Termination Style | Wire Leads - 6.7" (170.0mm) | Wire Leads - 6.7" (170.0mm) | Wire Leads - 6.7" (170.0mm) | Wire Leads - 6.7" (170.0mm) |
| Ingress Protection | - | - | - | - |
| Features | - | - | Flashing LED | - |
