Switch Components LM1-5-W-R
- Part No.:
- LM1-5-W-R
- Manufacturer:
- Switch Components
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
LM1-5-W-R.pdf
- Description:
- LED INDICATOR 5MM - RED, SCREW
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LM1-5-W-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Switch Components
- Series:
- LM1
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Red
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2.1V
- Current:
- 20mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.315" (8.00mm)
- Lens Size:
- 5.00mm Dia
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 5000mcd
- Wavelength - Peak:
- -
- Viewing Angle:
- 15°
- Termination Style:
- Wire Leads - 4.9" (125.0mm)
- Ingress Protection:
- IP67
- Features:
- -

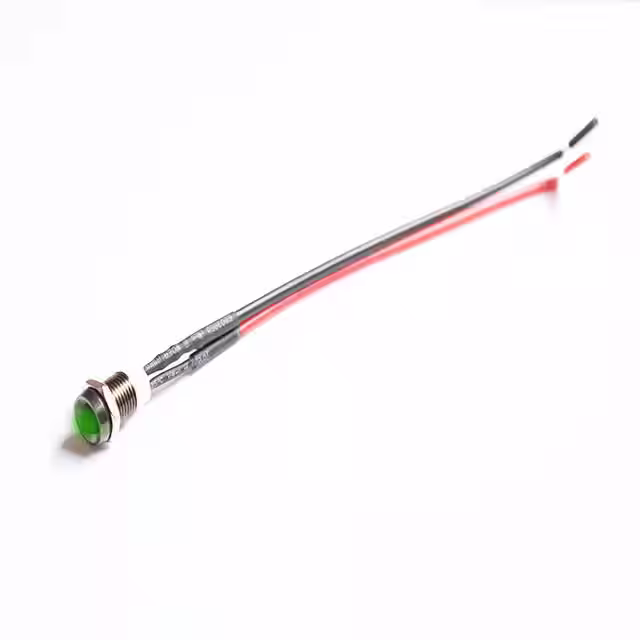

| Image |  |
 |
| Part Number | LM1-5-W-R | LM1-5-W-G |
| Manufacturer | Switch Components | Switch Components |
| Series | LM1 | LM1 |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Type | LED | LED |
| Lamp Color | Red | Green |
| Lens Color | Colorless | Colorless |
| Lens Transparency | Clear | Clear |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2.1V | 3.2V |
| Current | 20mA | 20mA |
| Panel Cutout Shape | Round | Round |
| Panel Cutout Dimensions | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Lens Size | 5.00mm Dia | 5.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 5000mcd | 8000mcd |
| Wavelength - Peak | - | - |
| Viewing Angle | 15° | 15° |
| Termination Style | Wire Leads - 4.9" (125.0mm) | Wire Leads - 4.9" (125.0mm) |
| Ingress Protection | IP67 | IP67 |
| Features | - | - |
