Lumex Opto/Components Inc. LDD-C514RI

Name: LDD-C514RI
Brand: Lumex Opto/Components Inc.
SKU: LDD-C514RI
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LDD-C514RI

Manufacturer:: Lumex Opto/Components Inc.

Category:: LED Character and Numeric

Package:: 18-DIP (0.600", 15.24mm)

Datasheet:: LDD-C514RI.pdf

Description:: DISPLAY 7SEG 0.56" DBL RED 18DIP

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

LDD-C514RI Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Lumex Opto/Components Inc.

Series:: -

Package/Case:: 18-DIP (0.600", 15.24mm)

Packaging:: Bulk

Product Status:: Active

Display Format:: -

Number of Characters:: 2

Size / Dimension:: 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm)

Digit/Alpha Size:: 0.56" (14.22mm)

Display Type:: 7-Segment

Common Pin:: Common Cathode

Color:: Red

Voltage - Forward (Vf) (Typ):: 2V

Current - Test:: 10mA

Millicandela Rating:: 3.9mcd

Wavelength - Peak:: 635nm

Power Dissipation (Max):: 105mW

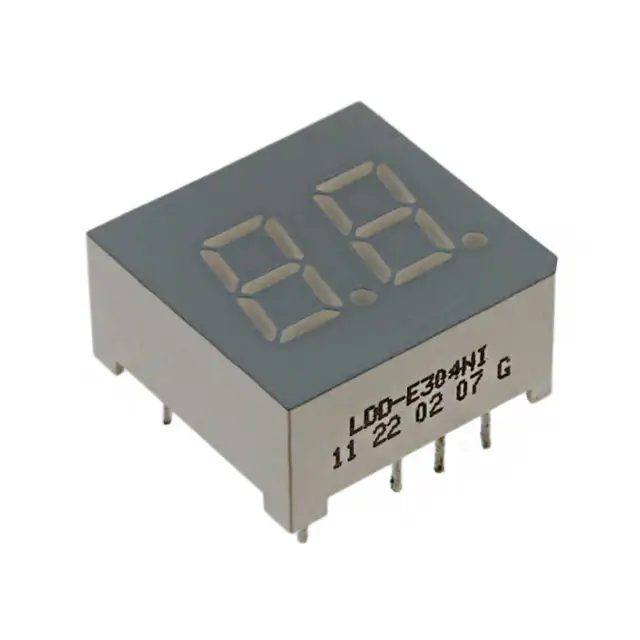

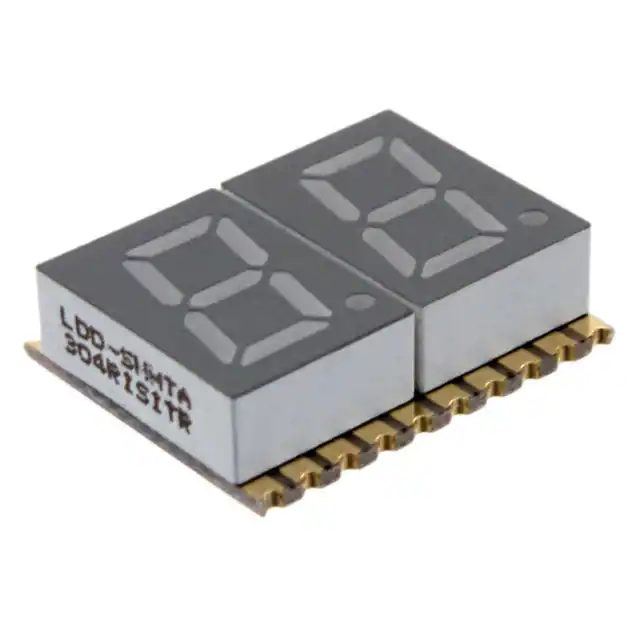

Part Number	LDD-C514RI	LDD-SMHTA304RISITR	LDD-A402NI	LDD-A514RI	LDD-E304NI
Manufacturer	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.
Series	-	-	-	-	-
Package/Case	18-DIP (0.600", 15.24mm)	20-SMD, No Lead	16-DIP (0.500", 12.70mm)	18-DIP (0.600", 15.24mm)	10-DIP (0.400", 10.16mm), 9 Leads
Packaging	Bulk	Tape & Reel (TR)	Bulk	Tube	Tube
Product Status	Active	Active	Active	Active	Active
Display Format	-	-	-	-	-
Number of Characters	2	2	2	2	2
Size / Dimension	0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm)	0.394" H x 0.583" W x 0.157" D (10.00mm x 14.80mm x 4.00mm)	0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm)	0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm)	0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm)
Digit/Alpha Size	0.56" (14.22mm)	0.30" (7.62mm)	0.40" (10.16mm)	0.56" (14.22mm)	0.30" (7.62mm)
Display Type	7-Segment	7-Segment	7-Segment	7-Segment	7-Segment
Common Pin	Common Cathode	Common Anode	Common Anode	Common Anode	Common Anode
Color	Red	Red	Green	Red	Red
Voltage - Forward (Vf) (Typ)	2V	2V	2.2V	2V	2V
Current - Test	10mA	20mA	10mA	10mA	10mA
Millicandela Rating	3.9mcd	4.5mcd	3.9mcd	3.9mcd	2mcd
Wavelength - Peak	635nm	640nm	565nm	635nm	635nm
Power Dissipation (Max)	105mW	60mW	105mW	105mW	105mW
