Rohm Semiconductor LAP-301DL
- Part No.:
- LAP-301DL
- Manufacturer:
- Rohm Semiconductor
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.300", 7.62mm)
- Description:
- HIGH BRIGHTNESS NUMERIC LED DISP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LAP-301DL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Rohm Semiconductor
- Series:
- L
- Package/Case:
- 10-DIP (0.300", 7.62mm)
- Packaging:
- Bulk
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm)
- Digit/Alpha Size:
- 0.32" (8.00mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Orange
- Voltage - Forward (Vf) (Typ):
- 1.9V
- Current - Test:
- 10mA
- Millicandela Rating:
- 250mcd
- Wavelength - Peak:
- 605nm
- Power Dissipation (Max):
- 448mW
| Image |  |
 |
 |
|
 |

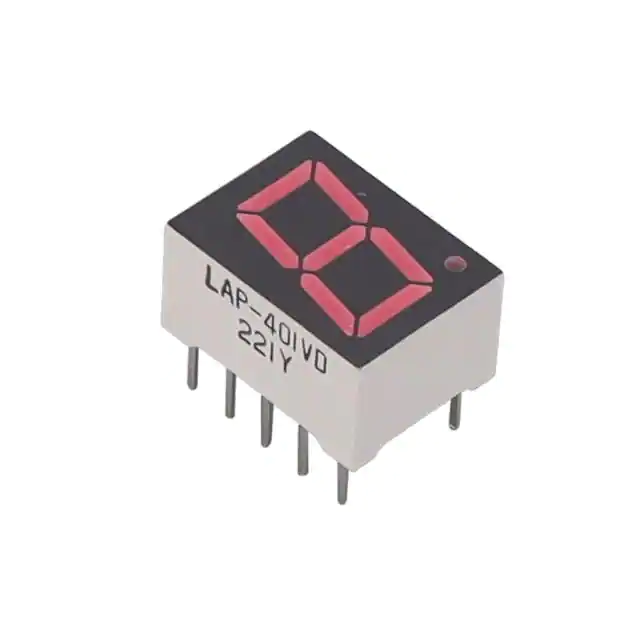

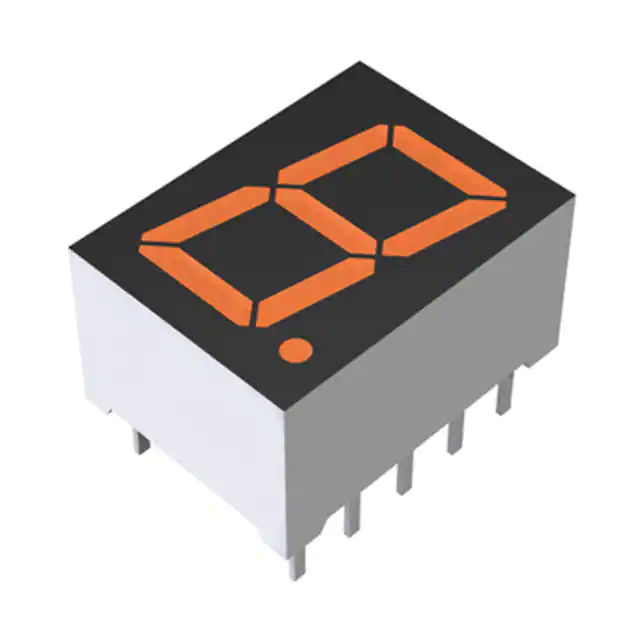

| Part Number | LAP-301DL | LAP-401DN | LAP-401VD | LAP-301VB | LAP-401DD |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Series | L | LAP-41 D/N | D | LAP-301 B/L | LAP-401 D/N |
| Package/Case | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.400", 10.16mm) | 10-DIP (0.209", 5.30mm) | 10-DIP (0.300", 7.62mm) |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) |
| Digit/Alpha Size | 0.32" (8.00mm) | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.31" (8.00mm) | 0.40" (10.16mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Anode | Common Anode | Common Anode |
| Color | Orange | Orange | Red | Red | Orange |
| Voltage - Forward (Vf) (Typ) | 1.9V | 1.9V | 1.9V | 1.9V | 1.9V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 20mA |
| Millicandela Rating | 250mcd | 250mcd | 36mcd | 36mcd | 250mcd |
| Wavelength - Peak | 605nm | 605nm | 650nm | 650nm | 605nm |
| Power Dissipation (Max) | 448mW | 448mW | 448mW | 448mW | 448mW |
