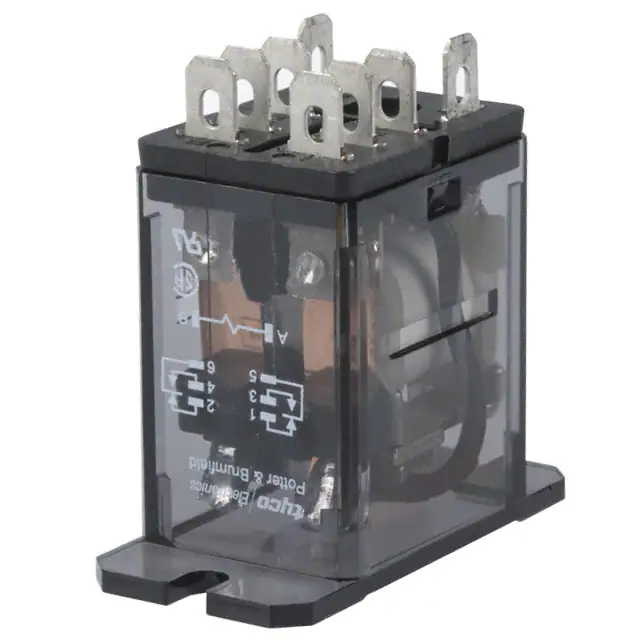

TE Connectivity Potter & Brumfield Relays K10P-11D15-12

Name: K10P-11D15-12
Brand: TE Connectivity Potter & Brumfield Relays
SKU: K10P-11D15-12
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: K10P-11D15-12

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Power Relays, Over 2 Amps

Package:

Description:: RELAY GEN PURPOSE DPDT 15A 12V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

K10P-11D15-12 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: K10

Packaging:: Tray

Product Status:: Active

Mounting Type:: Socketable

Coil Voltage:: 12VDC

Contact Form:: DPDT (2 Form C)

Contact Rating (Current):: 15 A

Switching Voltage:: 120VAC - Nom

Load - Max Switching:: -

Coil Current:: 75 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: Plug In, Quick Connect - 0.187" (4.7mm)

Seal Rating:: -

Coil Insulation:: Class B

Must Operate Voltage:: 9 VDC

Must Release Voltage:: 1.2 VDC

Operate Time:: 13 ms

Release Time:: 10 ms

Operating Temperature:: -45°C ~ 70°C

Contact Material:: Silver Cadmium Oxide (AgCdO)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

Part Number	K10P-11D15-12	K10P-11D15-24	K10P-11A15-120	K10P-11AT5-120	K10P-11D15-6
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	K10	K10	K10	K10	K10
Packaging	Tray	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active	Active
Mounting Type	Socketable	Socketable	Socketable	Chassis Mount	Socketable
Coil Voltage	12VDC	24VDC	120VAC	120VAC	6VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating (Current)	15 A	15 A	15 A	15 A	15 A
Switching Voltage	120VAC - Nom	120VAC - Nom	120VAC - Nom	120VAC - Nom	120VAC - Nom
Load - Max Switching	-	-	-	-	-
Coil Current	75 mA	37 mA	11 mA	11 mA	150 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating	-	-	-	-	-
Coil Insulation	Class B	Class B	Class B	Class B	Class B
Must Operate Voltage	9 VDC	18 VDC	102 VAC	102 VAC	4.5 VDC
Must Release Voltage	1.2 VDC	2.4 VDC	12 VAC	12 VAC	0.6 VDC
Operate Time	13 ms	13 ms	13 ms	13 ms	13 ms
Release Time	10 ms	10 ms	10 ms	10 ms	10 ms
Operating Temperature	-45°C ~ 70°C	-45°C ~ 70°C	-45°C ~ 70°C	-45°C ~ 70°C	-45°C ~ 70°C
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
