Diodes Incorporated PI3EQX16904GLZHEX
- Part No.:
- PI3EQX16904GLZHEX
- Manufacturer:
- Diodes Incorporated
- Category:
- Signal Buffers, Repeaters, Splitters
- Package:
- 42-VFQFN Exposed Pad
- Description:
- PCIE EQX V-QFN3590-42
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
PI3EQX16904GL - 4-Channel 16Gbps PCIe 4.0 Linear ReDriver (Signal Conditioner)
PI3EQX16904GL is a high-speed linear ReDriver from Diodes Incorporated, designed for PCI Express Gen4 (16Gbps) and other high-speed serial interfaces. It enhances signal integrity by compensating for channel losses in long PCB traces and interconnects.
This page is written for product identification and engineering selection guidance. Always verify final limits using the manufacturer's latest datasheet revision for design sign-off.
Overview

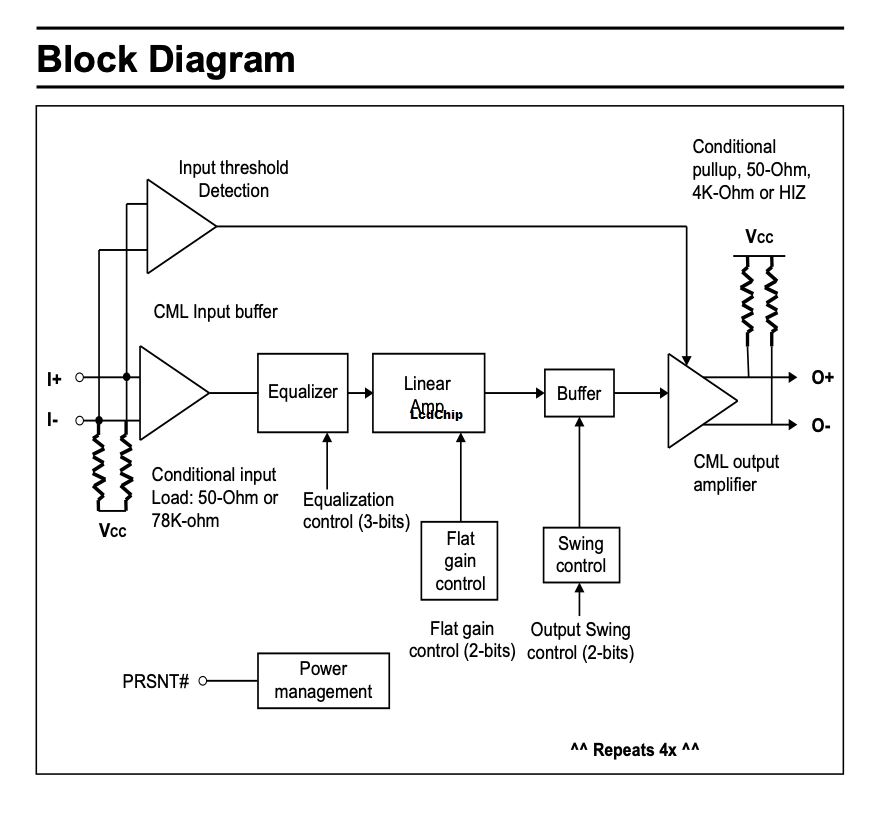

PI3EQX16904GL is a 4-channel high-speed signal conditioning device that restores signal quality in high-bandwidth digital communication systems. It uses linear equalization techniques to reduce jitter and inter-symbol interference (ISI).
This device is widely used in PCIe Gen4, high-speed storage, server platforms, and data center interconnects where signal degradation over long channels must be mitigated without protocol-level changes.
Key Advantages
Supports up to 16Gbps per channel for PCIe Gen4 and similar high-speed interfaces.
Ideal for multi-lane interfaces such as PCIe x4 links and high-speed data paths.
Preserves protocol transparency without introducing clock recovery delays.
Adjustable gain and equalization to optimize channel performance.
Feature Summary
Up to 16Gbps per channel (PCIe Gen4 compliant).
4 independent differential channels for high-throughput systems.
Optimized for efficient high-speed signal conditioning.
Enables fine tuning for different PCB trace lengths and losses.
Package & Footprint
The PI3EQX16904GL is typically offered in a compact WQFN-40 package, enabling high-density layout for high-speed applications.
- Follow high-speed layout practices (controlled impedance routing).
- Minimize trace discontinuities and via stubs.
- Ensure proper power decoupling and grounding.
Refer to datasheet for exact footprint and layout guidelines.
Pin Functions
The PI3EQX16904GL pinout includes differential I/O pairs and control interfaces.
Key Specifications
| Device Type | Linear ReDriver / Signal Conditioner |
|---|---|
| Channels | 4 |
| Data Rate | Up to 16Gbps |
| Protocol Support | PCIe Gen4, high-speed serial interfaces |
| Equalization | Programmable |
| Package | WQFN-40 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +85°C (typ.) |
Equivalent
Alternative high-speed signal conditioning solutions for PI3EQX16904GL include:
Engineering note: Validate channel loss budget, equalization settings, and insertion loss when selecting alternatives.
Manufacturer Information
Diodes Incorporated provides high-performance signal integrity and connectivity solutions across computing, networking, and consumer electronics markets.
- Core strengths: High-speed interfaces, analog, power management
- Markets: Data center, telecom, industrial, consumer
- Resources: Datasheets, design guides, evaluation boards
Applications
The PI3EQX16904GL is widely used in high-speed data transmission systems:
PCIe Gen4 Systems
Signal conditioning for high-speed PCIe interconnects.
Servers & Data Centers
Improves signal integrity across long backplane traces.
High-Speed Storage
Used in NVMe SSD and high-bandwidth storage interfaces.
Networking Equipment
Enhances signal quality in high-speed communication links.
Quality & Authenticity
- Incoming inspection: marking, package verification
- Traceability: supplier and lot control
- Anti-counterfeit: recommended for high-value ICs
FAQ
What is the difference between a ReDriver and ReTimer?
Is PI3EQX16904GL protocol dependent?
Does it support PCIe Gen5?
Disclaimer
PI3EQX16904GLZHEX Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- ReDriver™
- Package/Case:
- 42-VFQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Buffer, ReDriver
- Applications:
- Networking
- Input:
- CML
- Output:
- CML
- Data Rate (Max):
- 16Gbps
- Number of Channels:
- 4
- Delay Time:
- -
- Signal Conditioning:
- Input Equalization
- Capacitance - Input:
- -
- Voltage - Supply:
- 3V ~ 3.6V
- Current - Supply:
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 42-TQFN (9x3.5)
