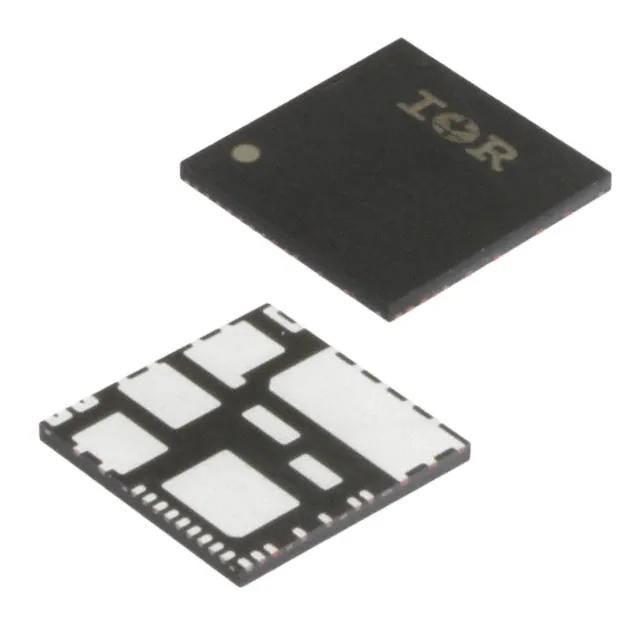

Infineon Technologies IRSM836-084MATR
- Part No.:
- IRSM836-084MATR
- Manufacturer:
- Infineon Technologies
- Category:
- Full Half-Bridge (H Bridge) Drivers
- Package:
- 36-PowerVQFN
- Datasheet:
-
IRSM836-084MATR.pdf
- Description:
- IC HALF BRIDGE DRIVER 7A 36QFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IRSM836-084MATR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Series:
- µIPM™
- Package/Case:
- 36-PowerVQFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Output Configuration:
- Half Bridge (3)
- Applications:
- AC Motors
- Interface:
- Logic
- Load Type:
- Inductive
- Technology:
- UMOS
- Rds On (Typ):
- 310mOhm
- Current - Output / Channel:
- 7A
- Current - Peak Output:
- 27A
- Voltage - Supply:
- 10V ~ 20V
- Voltage - Load:
- 200V (Max)
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Features:
- Bootstrap Circuit
- Fault Protection:
- UVLO
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 36-PQFN (12x12)
| Image | .jpg) |
|
 |
|
| Part Number | IRSM836-084MA | IRSM836-084MATR | IRSM836-015MA | IRSM836-015MATR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Series | µIPM™ | µIPM™ | µIPM™ | µIPM™ |
| Package/Case | 36-PowerVQFN | 36-PowerVQFN | 36-PowerVQFN | 36-PowerVQFN |
| Packaging | Tray | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
| Product Status | Active | Active | Discontinued at Digi-Key | Active |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Applications | AC Motors | AC Motors | AC Motors | AC Motors |
| Interface | Logic | Logic | Logic | Logic |
| Load Type | Inductive | Inductive | Inductive | Inductive |
| Technology | UMOS | UMOS | UMOS | UMOS |
| Rds On (Typ) | 310mOhm | 310mOhm | 4.8Ohm | 4.8Ohm |
| Current - Output / Channel | 7A | 7A | 1A | 1A |
| Current - Peak Output | 27A | 27A | 7A | 7A |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V | 13.5V ~ 16.5V | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) | 200V (Max) | 400V (Max) | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Features | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | UVLO | UVLO | UVLO | UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 36-PQFN (12x12) | 36-PQFN (12x12) | 36-PQFN (12x12) | 36-PQFN (12x12) |
