Broadcom Limited HSMS-C150
- Part No.:
- HSMS-C150
- Manufacturer:
- Broadcom Limited
- Category:
- LED Indication - Discrete
- Package:
- 1206 (3216 Metric)
- Description:
- LED RED DIFFUSED CHIP SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HSMS-C150 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- -
- Package/Case:
- 1206 (3216 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- Red
- Configuration:
- Standard
- Lens Color:
- White
- Lens Transparency:
- Diffused
- Millicandela Rating:
- 10mcd
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 2.00mm x 1.60mm
- Voltage - Forward (Vf) (Typ):
- 2.1V
- Current - Test:
- 20mA
- Viewing Angle:
- 170°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- 626nm
- Wavelength - Peak:
- 630nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- Chip LED
- Size / Dimension:
- 3.20mm L x 1.60mm W
| Image |  |
 |
|
 |
 |

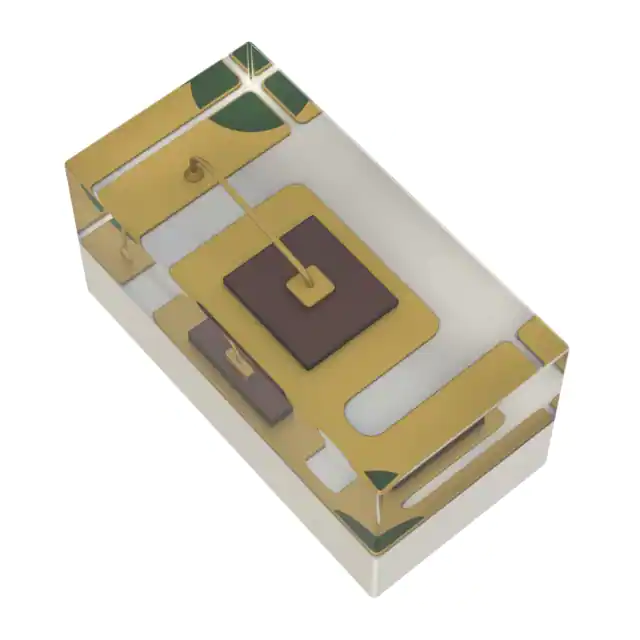

| Part Number | HSMS-C190 | HSMS-C150 | HSMS-C197 | HSMS-C170 | HSMS-C280 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | - | - | - | - | - |
| Package/Case | 0603 (1608 Metric) | 1206 (3216 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) | 0402 (1005 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | White | White | White | White | White |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 10mcd | 10mcd | 10mcd | 10mcd | 10mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm | 2.00mm x 1.60mm | 1.60mm x 0.80mm | 1.40mm x 1.25mm | 1.00mm x 0.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 170° | 170° | 130° | 170° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 626nm | 626nm | 626nm | 626nm | 626nm |
| Wavelength - Peak | 630nm | 630nm | 630nm | 630nm | 630nm |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | - |
| Size / Dimension | 1.60mm L x 0.80mm W | 3.20mm L x 1.60mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W | 1.00mm L x 0.50mm W |
