SolaHD HS1F1.5AS
- Part No.:
- HS1F1.5AS
- Manufacturer:
- SolaHD
- Category:
- Power Transformers
- Package:
- Datasheet:
-
HS1F1.5AS.pdf
- Description:
- PWR XFMR LAMINATED 1500VA CHAS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HS1F1.5AS Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SolaHD
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 240V, 480V
- Voltage - Secondary (Full Load):
- 120V, 240V
- Current - Output (Max):
- 12.5A
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 1500VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Solder, Quick Connect
- Size / Dimension:
- -
- Height - Seated (Max):
- -
- Voltage - Isolation:
- -
- Weight:
- -

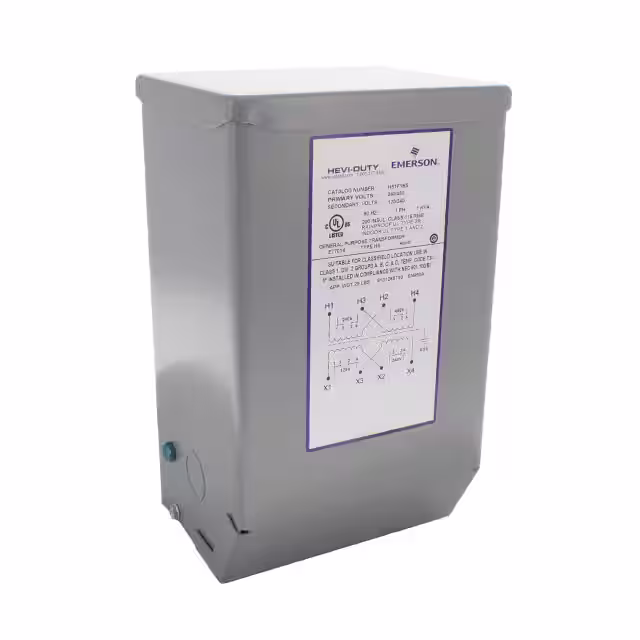

| Image |  |
 |
|
|
| Part Number | HS1F1.5AS | HS1F1BS | HS1F15AS12 | HS1F1BS12 |
| Manufacturer | SolaHD | SolaHD | SolaHD | SolaHD |
| Series | - | - | HS1 | HS1 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | - | - |
| Voltage - Primary | 240V, 480V | 240V, 480V | 240V, 480V | 240V, 480V |
| Voltage - Secondary (Full Load) | 120V, 240V | 120V, 240V | Parallel 120V, Series 240V | Parallel 120V, Series 240V |
| Current - Output (Max) | 12.5A | 8.33A | Parallel 12.5A, Series 6.52A | Parallel 8.33A, Series 4.17A |
| Primary Winding(s) | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No |
| Power - Max | 1500VA | 1000VA | 1500VA | 1000VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Solder, Quick Connect | Solder, Quick Connect | Wire Leads | Wire Leads |
| Size / Dimension | - | 152.40mm L x 127.00mm W | 254.00mm L x 177.80mm W | 152.40mm L x 127.00mm W |
| Height - Seated (Max) | - | 254.00mm | 304.80mm | 254.00mm |
| Voltage - Isolation | - | - | - | - |
| Weight | - | - | - | - |
