Analog Devices Inc. HMC347
- Part No.:
- HMC347
- Manufacturer:
- Analog Devices Inc.
- Category:
- RF Switches
- Package:
- Die
- Datasheet:
-
HMC347.pdf
- Description:
- IC RF SWITCH SPDT 20GHZ DIE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HMC347 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- Die
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Type:
- VSAT
- Topology:
- Absorptive
- Circuit:
- SPDT
- Frequency Range:
- 0Hz ~ 20GHz
- Isolation:
- 45dB
- Insertion Loss:
- 1.7dB
- Test Frequency:
- 20GHz
- P1dB:
- 23dBm
- IIP3:
- 43dBm
- Features:
- -
- Impedance:
- 50Ohm
- Voltage - Supply:
- -
- Operating Temperature:
- -55°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- -
- Supplier Device Package:
- Die
| Image |  |
|
 |
|
 |

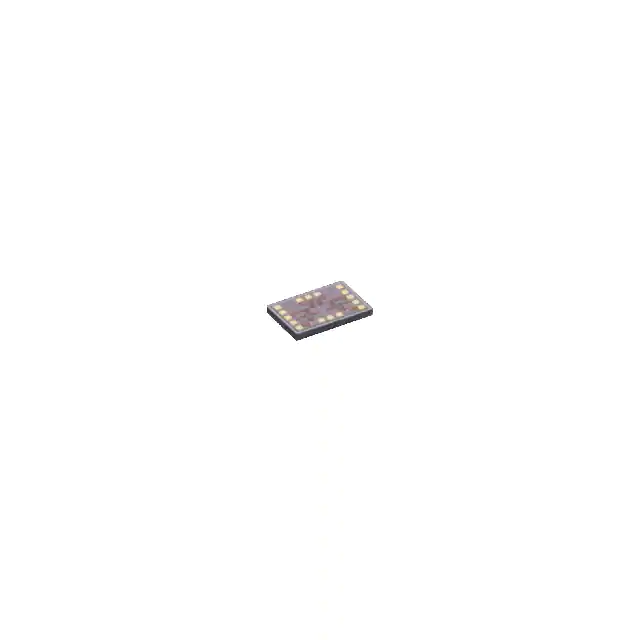

| Part Number | HMC347ALP3E | HMC347ALP3ETR | HMC347B-SX | HMC347B | HMC347A-SX |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Package/Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | Die | Die | Die |
| Packaging | Strip | Tape & Reel (TR) | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| RF Type | VSAT | VSAT | VSAT | VSAT | VSAT |
| Topology | Absorptive | Absorptive | Absorptive | Absorptive | - |
| Circuit | SPDT | SPDT | SPDT | SPDT | SPDT |
| Frequency Range | 0Hz ~ 14GHz | 0Hz ~ 14GHz | 100MHz ~ 20GHz | 0.1Hz ~ 20GHz | 0Hz ~ 20GHz |
| Isolation | 38dB | 38dB | 45dB | 45dB | 40dB |
| Insertion Loss | 1.9dB | 1.9dB | 1.7dB | 1.7dB | 2.1dB |
| Test Frequency | 14GHz | 14GHz | 20GHz | 20GHz | 20GHz |
| P1dB | 23dBm | 23dBm | 25dBm | 23dBm | 29dBm |
| IIP3 | 43dBm | 43dBm | 41dBm | 41dBm | 45dBm |
| Features | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | - | - | - | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | - | - |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | Die | Die | - |
