NuWaves RF Solutions HILNA-CX
- Part No.:
- HILNA-CX
- Manufacturer:
- NuWaves RF Solutions
- Category:
- RF Amplifiers
- Package:
- Module, SMA Connectors
- Datasheet:
-
HILNA-CX.pdf
- Description:
- Low Noise Amp, 35 dB Gain, 5-10
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HILNA-CX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NuWaves RF Solutions
- Series:
- -
- Package/Case:
- Module, SMA Connectors
- Packaging:
- Box
- Product Status:
- Active
- Frequency:
- 5GHz ~ 10GHz
- P1dB:
- 11dBm
- Gain:
- 35dB
- Noise Figure:
- 2.5dB
- RF Type:
- General Purpose
- Voltage - Supply:
- 5.5V ~ 20V
- Current - Supply:
- 170mA
- Test Frequency:
- 5GHz ~ 10GHz
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Supplier Device Package:
- -
| Image |  |
 |
 |
 |
 |

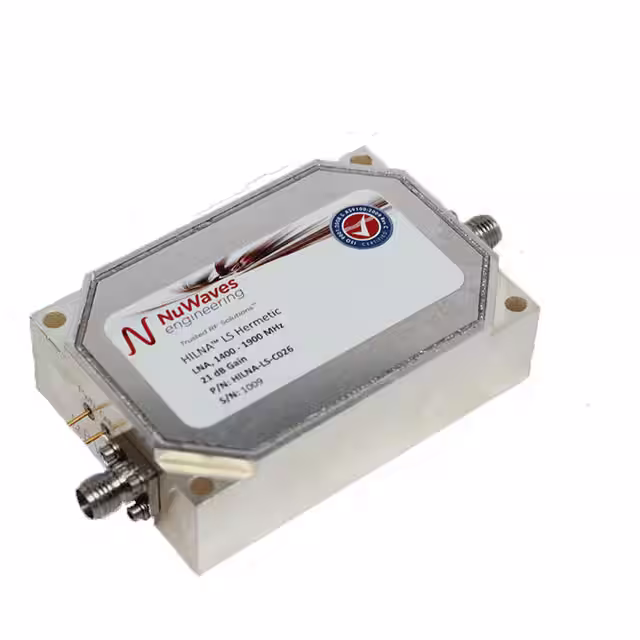

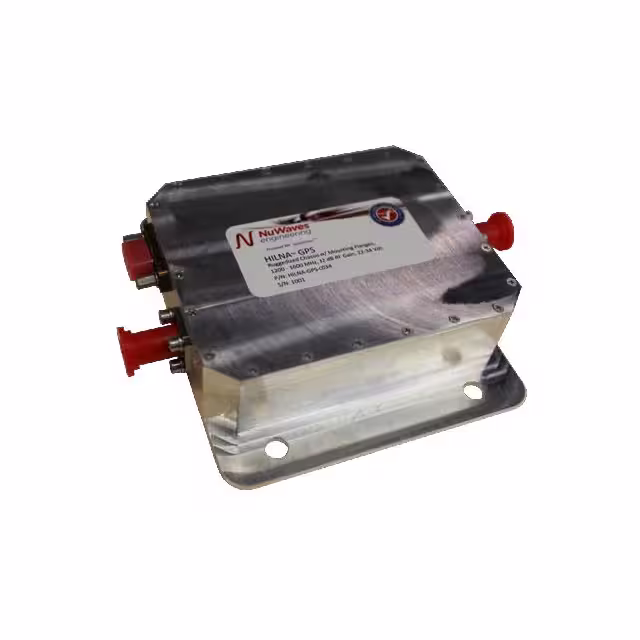

| Part Number | HILNA-V1 | HILNA-LS | HILNA-CX | HILNA-LS-C026 | HILNA-GPS-M/F |
| Manufacturer | NuWaves RF Solutions | NuWaves RF Solutions | NuWaves RF Solutions | NuWaves RF Solutions | NuWaves RF Solutions |
| Series | - | - | - | - | - |
| Package/Case | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Frequency | 50MHz ~ 1GHz | 1GHz ~ 3GHz | 5GHz ~ 10GHz | 1.4GHz ~ 1.9GHz | 1.2GHz ~ 1.6GHz |
| P1dB | 17dBm | 17dBm | 11dBm | 19dBm | 19dBm |
| Gain | 20dB | 50dB | 35dB | 24dB | 35dB |
| Noise Figure | 0.8dB | 1.7dB | 2.5dB | 1.6dB | 0.8dB |
| RF Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Voltage - Supply | 5V ~ 20V | 5V ~ 15V | 5.5V ~ 20V | 5V ~ 8V | 5V ~ 20V |
| Current - Supply | 70mA | 300mA | 170mA | 300mA | 140mA |
| Test Frequency | 50MHz ~ 1GHz | 1GHz ~ 3GHz | 5GHz ~ 10GHz | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | - | - |
| Supplier Device Package | - | - | - | - | - |
