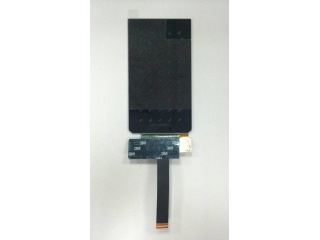

AUO H497TLB01.4
- Part No.:
- H497TLB01.4
- Manufacturer:
- AUO
- Category:
- Graphic OLED Display
- Package:
- Description:
- AUO 5" 720×1280 AM-OLED 16.7M RM69052 MIPI 39pins On-Cell Touch
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
H497TLB01.4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 5"
- Panel Type:
- AM-OLED
- Resolution:
- 720×1280
- Colors:
- 16.7M
- Viewing Area:
- 61.92×110.08
- Outline Size:
- 65.92(H)×118.64(V) ×1.2(D) mm
- Treatment:
- -
- Brightness:
- 275 cd/m² (Typ.)
- Contrast Ratio:
- 10000:1 (Min.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down)
- Response Time:
- 1 (Max.)(Tr+Td)
- Best View on:
- Work Mode:
- -
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 100% NTSC
- Backlight:
- self
- Used for:
- Mobile Phone
- Touch Screen:
- On-Cell Touch, I²C
- Refresh Rate:
- 60Hz
- Driver IC list:
- Built-in RM69052
| Image |  |
 |
 |
|
| Part Number | H497TLB01.0 | H497TLB01.4 | H497TLB01 | H497TLB01.0 CELL |
| Manufacturer | AUO | AUO | AUO | AUO |
| Panel Size | 5" | 5" | 5" | 5" |
| Panel Type | AM-OLED | AM-OLED | AM-OLED | AM-OLED |
| Resolution | 720×1280 | 720×1280 | 720×1280 | 720×1280 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing Area | 61.92×110.08 | 61.92×110.08 | 61.92×110.08 | 61.92×110.08 |
| Outline Size | 65.92(W)×118.64(H) ×1.15(D) mm | 65.92(H)×118.64(V) ×1.2(D) mm | 65.92 × 118.64 × 0.87 (H×V×D) | 65.92(W)×118.64(H)×0.87(D) |
| Treatment | - | - | - | - |
| Brightness | 250 cd/m² (Typ.) | 275 cd/m² (Typ.) | 250 cd/m² (Typ.) | 350 (Typ.)(cd/m²) |
| Contrast Ratio | 10000:1 (Min.) (TM) | 10000:1 (Min.) (TM) | 10000 : 1 (Min.) (TM) | 10000 : 1 (Min.) (TM) |
| View Direction | Symmetry | |||
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥200) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥1600) |
| Response Time | 1 (Max.)(Tr+Td) | 1 (Max.)(Tr+Td) | 1 (Max.)(Tr+Td) ms | 1 (Max.)(Tr+Td) ms |
| Best View on | Symmetry | Symmetry | Symmetry | |
| Work Mode | - | - | - | - |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 16.7M 100% NTSC | 16.7M 100% NTSC | 16.7M 102% NTSC | 16.7M 100% NTSC |
| Backlight | self | self | self | self |
| Used for | Mobile Phone | Mobile Phone | Mobile Phone | |
| Touch Screen | On-Cell Touch, I²C | On-Cell Touch, I²C | On-Cell Touch | On-Cell Touch |
| Refresh Rate | 60Hz | 60Hz | 60Hz | 60Hz |
| Driver IC list | Built-in RM69052 | Built-in RM69052 | Suggest RM69052 | Built-in COG RM69052 |
