AUO H139BLN01.0
- Part No.:
- H139BLN01.0
- Manufacturer:
- AUO
- Category:
- Graphic OLED Display
- Package:
- Description:
- AUO 1.39" Flat Circular 400×400 AM-OLED 16.7M COF RM69080 MIPI 24pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
H139BLN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 1.39"
- Panel Type:
- AM-OLED
- Resolution:
- 400×400
- Colors:
- 16.7M
- Viewing Area:
- 35.4×35.4
- Outline Size:
- 40.5 × 38.6 × 0.79 (H×V×D)
- Treatment:
- Glare (Haze 0%), Hard coating (3H)
- Brightness:
- 350 cd/m² (Typ.)
- Contrast Ratio:
- 10000 : 1 (Min.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down)
- Response Time:
- 2/2 (Typ.)(Tr/Td) ms
- Best View on:
- Symmetry
- Work Mode:
- -
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 100% NTSC
- Backlight:
- self
- Used for:
- Wearable; Round Display
- Touch Screen:
- Without
- Refresh Rate:
- -
- Driver IC list:
- Built-in COF RM69080
| Image |  |
 |
 |

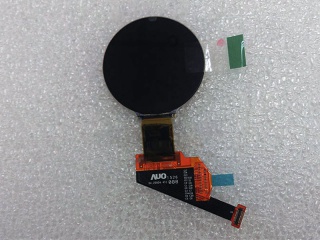

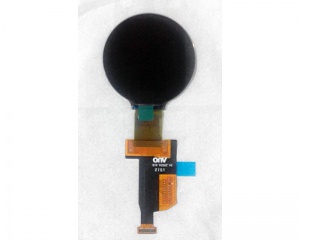

| Part Number | H139BLN01.0 | H139BLN01.1 | H139BLN01.2 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 1.39" | 1.39" | 1.39" |
| Panel Type | AM-OLED | AM-OLED | AM-OLED |
| Resolution | 400×400 | 400×400 | 400×400 |
| Colors | 16.7M | 16.7M | 16.7M |
| Viewing Area | 35.4×35.4 | 35.4×35.4 | 35.4×35.4 |
| Outline Size | 40.5 × 38.6 × 0.79 (H×V×D) | 38.6(W)×40.5(H)×0.79(D) mm | 38.6×40.5×0.79 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) | - | |
| Brightness | 350 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | 10000 : 1 (Min.) (TM) | 10000 : 1 (Min.) (TM) | |
| View Direction | |||
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥1600) (Left / Right / Up / Down) |
| Response Time | 2/2 (Typ.)(Tr/Td) ms | 1 (Max.)(Tr+Td) ms | |
| Best View on | Symmetry | Symmetry | Symmetry |
| Work Mode | - | - | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 100% NTSC | 16.7M 103% NTSC | 16.7M 103% NTSC |
| Backlight | self | self | |
| Used for | Wearable; Round Display | Wearable; Round Display | |
| Touch Screen | Without | Without | |
| Refresh Rate | - | - | - |
| Driver IC list | Built-in COF RM69080 | Built-in COF RM69080 | Built-in COF RM69080 |
