Omron Electronics Inc-EMC Div G9EJ-1-E-UVD DC12
- Part No.:
- G9EJ-1-E-UVD DC12
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
G9EJ-1-E-UVD DC12.pdf
- Description:
- RELAY AUTOMOTIVE SPST 15A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G9EJ-1-E-UVD DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G9EJ-1-E
- Packaging:
- Tray
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 100 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 15 A
- Switching Voltage:
- 400VDC - Max
- Must Operate Voltage:
- 7.2 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 50 ms
- Release Time:
- 30 ms
- Features:
- -
- Mounting Type:
- Chassis Mount
- Termination Style:
- Plug In, Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 70°C

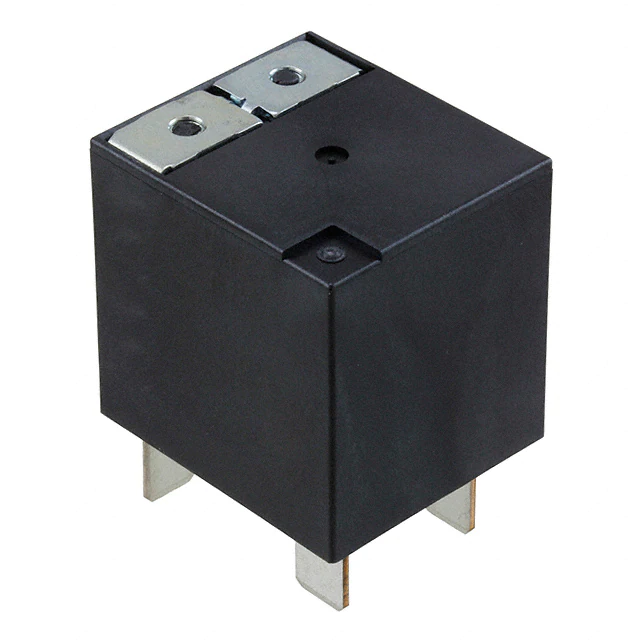

| Image |  |
|
 |
|
| Part Number | G9EJ-1-E-UVD DC12 | G9EJ-1-E-UVD DC24 | G9EJ-1-DC12 | G9EJ-1-P-E-UVD DC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G9EJ-1-E | G9EJ-1-E | G9EJ | G9EJ |
| Packaging | Tray | Tray | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 100 mA | 50 mA | 167 mA | 50 mA |
| Coil Voltage | 12VDC | 24VDC | 12VDC | 24VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 15 A | 15 A | 25 A | 15 A |
| Switching Voltage | 400VDC - Max | 400VDC - Max | 400VDC - Max | 400VDC - Max |
| Must Operate Voltage | 7.2 VDC | 14.4 VDC | 7.2 VDC | 14.4 VDC |
| Must Release Voltage | 0.6 VDC | 1.2 VDC | 0.6 VDC | 1.2 VDC |
| Operate Time | 50 ms | 50 ms | 50 ms | 50 ms |
| Release Time | 30 ms | 30 ms | 30 ms | 30 ms |
| Features | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | - | Through Hole |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In, Quick Connect - 0.250" (6.3mm) | PC Pin |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 70°C |
