Omron Electronics Inc-EMC Div G8V-1A7T-R-DC12
- Part No.:
- G8V-1A7T-R-DC12
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
G8V-1A7T-R-DC12.pdf
- Description:
- RELAY AUTOMOTIVE SPST 20A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G8V-1A7T-R-DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G8V
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Coil Type:
- Non Latching
- Coil Current:
- -
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 16VDC - Max
- Must Operate Voltage:
- 8 VDC
- Must Release Voltage:
- 1 VDC
- Operate Time:
- 10 ms
- Release Time:
- 10 ms
- Features:
- -
- Mounting Type:
- Socketable
- Termination Style:
- Plug In
- Operating Temperature:
- -40°C ~ 125°C
| Image |  |
|
 |
 |
 |

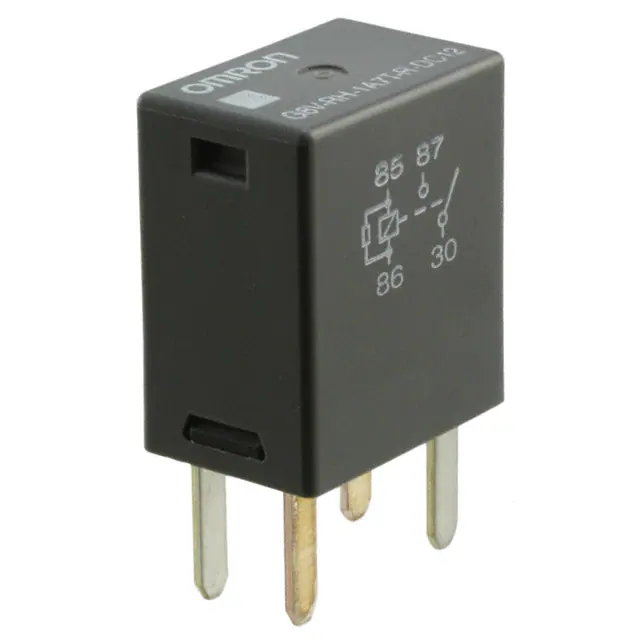

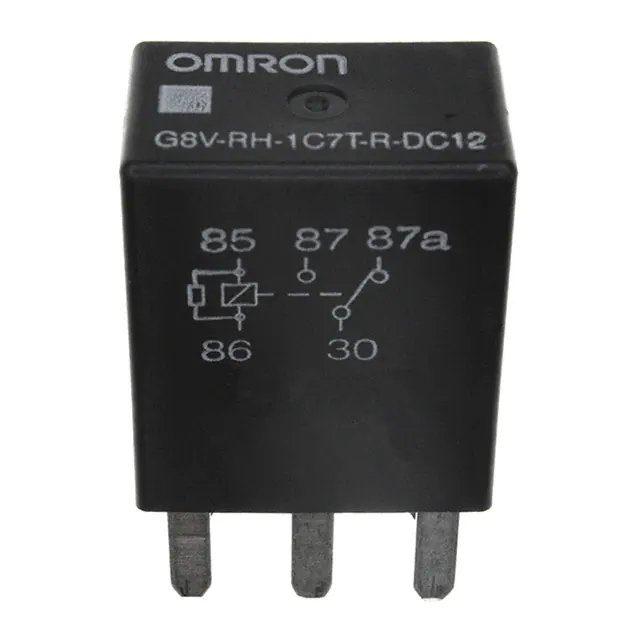

| Part Number | G8V-1A7T-R-DC12 | G8V-1C7T-R-DC12 | G8V-RH-1A7T-R-DC12 | G8V-RH-1C7T-R-DC12 | G8VL-1A4TRL-DC12 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G8V | G8V | G8V-RH | G8V-RH | G8VL |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | - | - | - | - | - |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPDT (1 Form C) | SPST-NO (1 Form A) | SPDT (1 Form C) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A | 10 A | 35 A | 20 A | 20 A |
| Switching Voltage | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max |
| Must Operate Voltage | 8 VDC | 8 VDC | 8 VDC | 8 VDC | 8 VDC |
| Must Release Voltage | 1 VDC | 1 VDC | 1 VDC | 1 VDC | 0.7 VDC |
| Operate Time | 10 ms | 10 ms | 20 ms | 20 ms | 10 ms |
| Release Time | 10 ms | 10 ms | 20 ms | 20 ms | 10 ms |
| Features | - | - | - | - | - |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Termination Style | Plug In | Plug In | Plug In | Plug In | Plug In |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 100°C |
