Omron Electronics Inc-EMC Div G8H-1C4T-R-DC12
- Part No.:
- G8H-1C4T-R-DC12
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
G8H-1C4T-R-DC12.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 10A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G8H-1C4T-R-DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G8H
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Coil Type:
- Non Latching
- Coil Current:
- 120 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 16VDC - Max
- Must Operate Voltage:
- 7 VDC
- Must Release Voltage:
- 0.7 VDC
- Operate Time:
- 20 ms
- Release Time:
- 10 ms
- Features:
- -
- Mounting Type:
- Socketable
- Termination Style:
- Plug In
- Operating Temperature:
- -40°C ~ 125°C
| Image |  |
 |
 |
 |

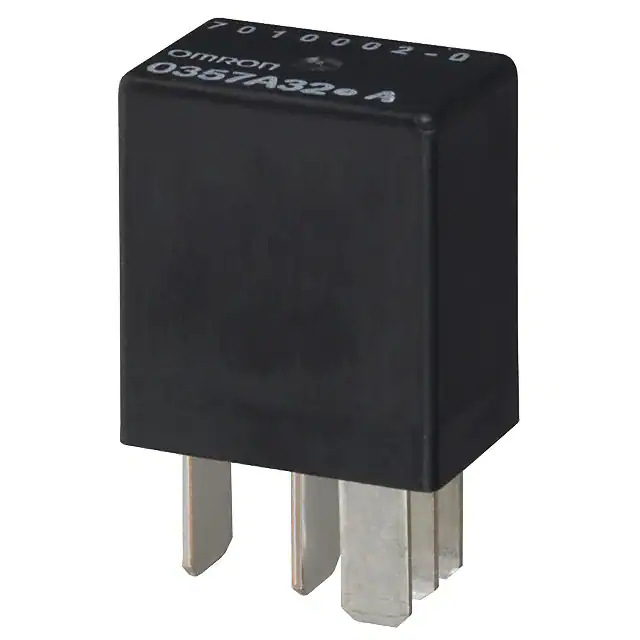

| Part Number | G8H-1C4T-R-DC12 | G8HN-1C2T-R DC12 | G8HE-1A7T-R-DC12 | G8HE-1C7T-R-DC12 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G8H | G8HN | G8HE | G8HE |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 120 mA | - | 141 mA | 141 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 40 A | 40 A |
| Switching Voltage | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max |
| Must Operate Voltage | 7 VDC | 8.5 VDC | 8 VDC | 8 VDC |
| Must Release Voltage | 0.7 VDC | 1 VDC | 1 VDC | 1 VDC |
| Operate Time | 20 ms | 20 ms | 20 ms | 20 ms |
| Release Time | 10 ms | 10 ms | 20 ms | 20 ms |
| Features | - | - | Resistor | Resistor |
| Mounting Type | Socketable | Socketable | Socketable | Socketable |
| Termination Style | Plug In | Plug In | Plug In | Plug In |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
