Omron Electronics Inc-EMC Div G6S-2G DC5

Name: G6S-2G DC5
Brand: Omron Electronics Inc-EMC Div
SKU: G6S-2G DC5
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G6S-2G DC5

Manufacturer:: Omron Electronics Inc-EMC Div

Category:: Signal Relays, Up to 2 Amps

Package:

Datasheet:: G6S-2G DC5.pdf

Description:: RELAY TELECOM DPDT 2A 5V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

G6S-2G DC5 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Electronics Inc-EMC Div

Series:: G6S

Packaging:: Tube

Product Status:: Active

Mounting Type:: Surface Mount

Coil Voltage:: 5VDC

Contact Form:: DPDT (2 Form C)

Contact Rating (Current):: 2 A

Switching Voltage:: 250VAC, 220VDC - Max

Load - Max Switching:: 500VA, 440W

Coil Current:: 28.1 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: J Lead

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 3.75 VDC

Must Release Voltage:: 0.5 VDC

Operate Time:: 4 ms

Release Time:: 4 ms

Operating Temperature:: -40°C ~ 85°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: Telecom

Grade:: -

Qualification:: -

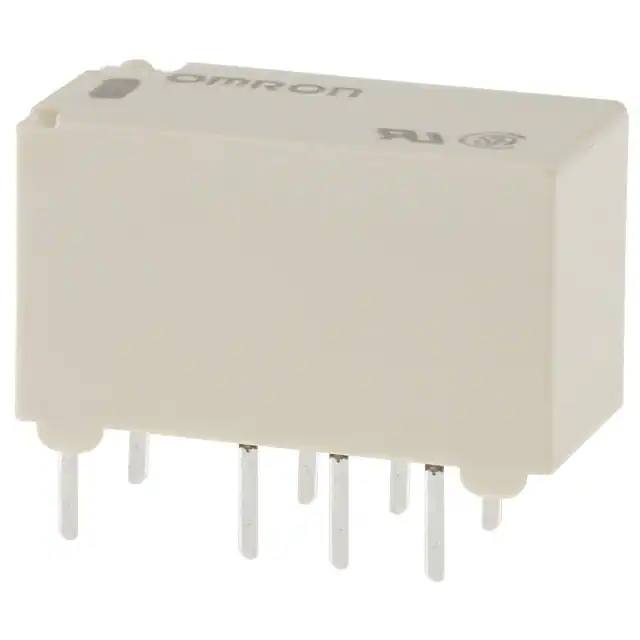

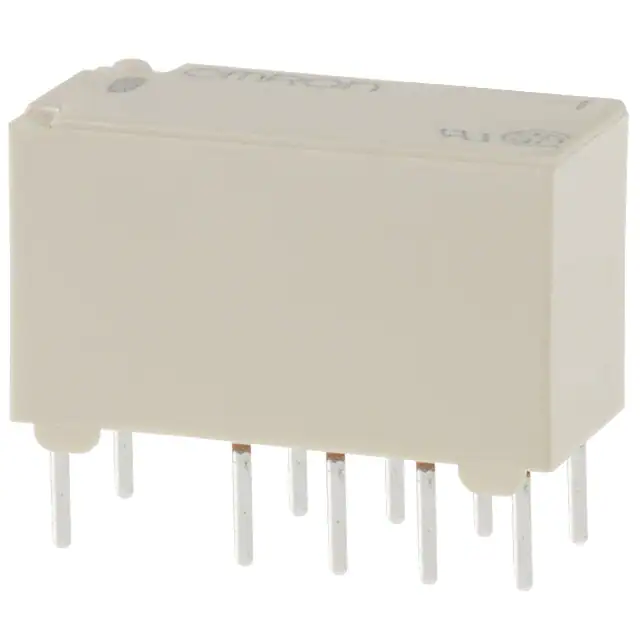

Part Number	G6S-2F-TR DC5	G6S-2 DC5	G6S-2F-TR DC12	G6S-2G DC5	G6SK-2 DC3
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	G6S	G6S	G6S	G6S	G6S
Packaging	Tape & Reel (TR)	Tube	Tape & Reel (TR)	Tube	Tube
Product Status	Active	Active	Active	Active	Active
Mounting Type	Surface Mount	Through Hole	Surface Mount	Surface Mount	Through Hole
Coil Voltage	5VDC	5VDC	12VDC	5VDC	3VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating (Current)	2 A	2 A	2 A	2 A	2 A
Switching Voltage	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max
Load - Max Switching	500VA, 440W	500VA, 440W	500VA, 440W	500VA, 440W	500VA, 440W
Coil Current	28.1 mA	28.1 mA	11.7 mA	28.1 mA	66.7 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Latching, Dual Coil
Features	-	-	-	-	-
Termination Style	Gull Wing	PC Pin	Gull Wing	J Lead	PC Pin
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	3.75 VDC	3.75 VDC	9 VDC	3.75 VDC	2.25 VDC
Must Release Voltage	0.5 VDC	0.5 VDC	1.2 VDC	0.5 VDC	-
Operate Time	4 ms	4 ms	4 ms	4 ms	4 ms
Release Time	4 ms	4 ms	4 ms	4 ms	4 ms
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	Telecom	Telecom	Telecom	Telecom	Telecom
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
