CIT Relay and Switch J104D2C5VDC.20S
- Part No.:
- J104D2C5VDC.20S
- Manufacturer:
- CIT Relay and Switch
- Category:
- Signal Relays, Up to 2 Amps
- Package:
- Datasheet:
-
J104D2C5VDC.20S.pdf
- Description:
- RELAY GENERAL PURPOSE DPDT 2A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
J104D2C5VDC.20S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- J104D
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 2 A
- Switching Voltage:
- 250VAC, 100VDC - Max
- Load - Max Switching:
- 500VA, 200W
- Coil Current:
- 40 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 3.75 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 6 ms
- Release Time:
- 4 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Nickel (AgNi), Gold (Au)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

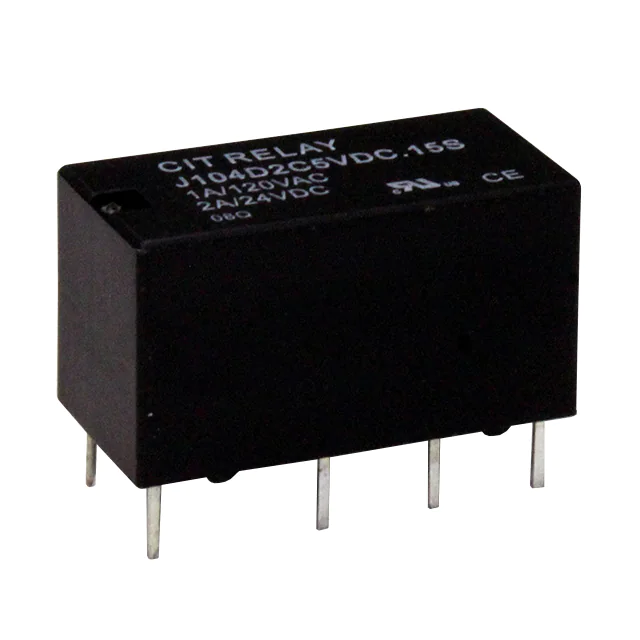

| Image |  |
 |
 |
|
| Part Number | J104D2C5VDC.20S | J104D2C5VDC.15S | J104D2C5VDC.45S | J104D2C5VDC.36S |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Series | J104D | J104D | J104D | J104D |
| Packaging | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 5VDC | 5VDC | 5VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A | 2 A | 2 A | 2 A |
| Switching Voltage | 250VAC, 100VDC - Max | 250VAC, 100VDC - Max | 250VAC, 100VDC - Max | 250VAC, 100VDC - Max |
| Load - Max Switching | 500VA, 200W | 500VA, 200W | 500VA, 200W | 500VA, 200W |
| Coil Current | 40 mA | 29.9 mA | 89.3 mA | 71.4 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | - |
| Must Operate Voltage | 3.75 VDC | 3.75 VDC | 3.75 VDC | 3.75 VDC |
| Must Release Voltage | 0.5 VDC | 0.5 VDC | 0.5 VDC | 0.5 VDC |
| Operate Time | 6 ms | 6 ms | 6 ms | 6 ms |
| Release Time | 4 ms | 4 ms | 4 ms | 4 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
