Omron Electronics Inc-EMC Div G6SK-2 DC3

Name: G6SK-2 DC3
Brand: Omron Electronics Inc-EMC Div
SKU: G6SK-2 DC3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G6SK-2 DC3

Manufacturer:: Omron Electronics Inc-EMC Div

Category:: Signal Relays, Up to 2 Amps

Package:

Datasheet:: G6SK-2 DC3.pdf

Description:: RELAY TELECOM DPDT 2A 3V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

G6SK-2 DC3 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Electronics Inc-EMC Div

Series:: G6S

Packaging:: Tube

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 3VDC

Contact Form:: DPDT (2 Form C)

Contact Rating (Current):: 2 A

Switching Voltage:: 250VAC, 220VDC - Max

Load - Max Switching:: 500VA, 440W

Coil Current:: 66.7 mA

Coil Type:: Latching, Dual Coil

Features:: -

Termination Style:: PC Pin

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 2.25 VDC

Must Release Voltage:: -

Operate Time:: 4 ms

Release Time:: 4 ms

Operating Temperature:: -40°C ~ 85°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: Telecom

Grade:: -

Qualification:: -

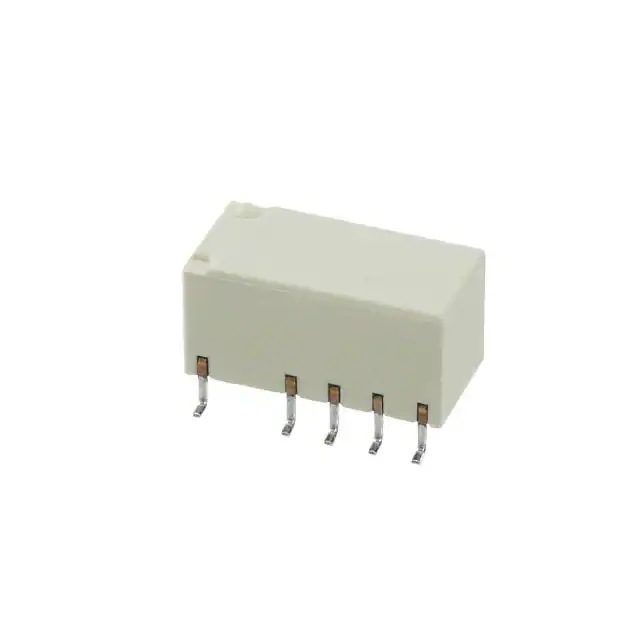

Part Number	G6SK-2 DC3	G6SK-2 DC12	G6SK-2F-TR DC5	G6SK-2F DC5	G6SK-2F-TR DC12
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	G6S	G6S	G6S	G6S	G6S
Packaging	Tube	Tube	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Mounting Type	Through Hole	Through Hole	Surface Mount	Surface Mount	Surface Mount
Coil Voltage	3VDC	12VDC	5VDC	5VDC	12VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating (Current)	2 A	2 A	2 A	2 A	2 A
Switching Voltage	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max
Load - Max Switching	500VA, 440W	500VA, 440W	500VA, 440W	500VA, 440W	500VA, 440W
Coil Current	66.7 mA	16.7 mA	40 mA	40 mA	16.7 mA
Coil Type	Latching, Dual Coil	Latching, Dual Coil	Latching, Dual Coil	Latching, Dual Coil	Latching, Dual Coil
Features	-	-	-	-	-
Termination Style	PC Pin	PC Pin	Gull Wing	Gull Wing	Gull Wing
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	2.25 VDC	9 VDC	3.75 VDC	3.75 VDC	9 VDC
Must Release Voltage	-	-	-	-	-
Operate Time	4 ms	4 ms	4 ms	4 ms	4 ms
Release Time	4 ms	4 ms	4 ms	4 ms	4 ms
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	Telecom	Telecom	Telecom	Telecom	Telecom
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
