Taoglas Limited FXUB66.07.0150C
- Part No.:
- FXUB66.07.0150C
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
FXUB66.07.0150C.pdf
- Description:
- RF ANT 3.4GHZ FLAT PATCH U.FL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FXUB66.07.0150C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Cellular, Navigation, WiFi
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 3.4GHz
- Frequency Range:
- 700MHz ~ 6GHz
- Antenna Type:
- Flat Patch
- Number of Bands:
- 1
- VSWR:
- 2.2
- Return Loss:
- -7dB
- Gain:
- 5dBi
- Power - Max:
- 5 W
- Features:
- -
- Termination:
- U.FL (UMCC), I-PEX MHF1
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 0.008" (0.20mm)
- Applications:
- CDMA, GPS, GSM, LTE, UMTS, WLAN
| Image |  |
 |
 |

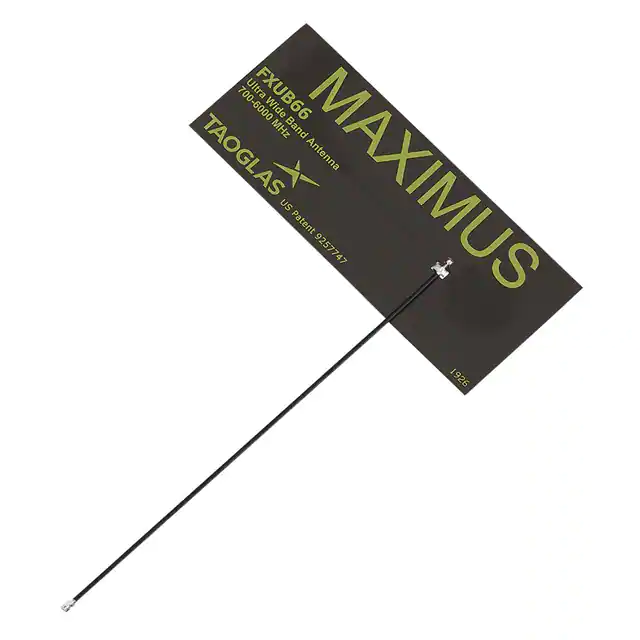

| Part Number | FXUB66.07.0150C | FXUB66.01.0150C | FXUB66.54.0150C |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | Maximus |
| Packaging | Bag | Bag | Bulk |
| Product Status | Active | Active | Active |
| RF Family/Standard | Cellular, Navigation, WiFi | Cellular, Navigation, WiFi | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 3.4GHz | 3.4GHz | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz |
| Frequency Range | 700MHz ~ 6GHz | 700MHz ~ 6GHz | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz |
| Antenna Type | Flat Patch | Flat Patch | Flat Patch |
| Number of Bands | 1 | 1 | 9 |
| VSWR | 2.2 | 2.2 | 1.1, 2, 2.2, 3, 3.5 |
| Return Loss | -7dB | -7dB | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB |
| Gain | 5dBi | 6.4dBi | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi |
| Power - Max | 5 W | 5 W | 5 W |
| Features | - | - | Cable - 150mm |
| Termination | U.FL (UMCC), I-PEX MHF1 | SMA Male | I-PEX MHF4L |
| Ingress Protection | - | - | - |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.008" (0.20mm) | 0.008" (0.20mm) | 0.008" (0.20mm) |
| Applications | CDMA, GPS, GSM, LTE, UMTS, WLAN | CDMA, GPS, GSM, LTE, UMTS, WLAN | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
