Taoglas Limited FXUB63.07.0150C
- Part No.:
- FXUB63.07.0150C
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
FXUB63.07.0150C.pdf
- Description:
- RF ANT 850MHZ/1.575GHZ FLT PATCH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FXUB63.07.0150C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- AGPS, Cellular, General ISM, WiFi
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
- Frequency Range:
- 600MHz ~ 6GHz
- Antenna Type:
- Flat Patch
- Number of Bands:
- 8
- VSWR:
- 2, 2, 1.8, 1.7, 1.7, 2.3
- Return Loss:
- -
- Gain:
- 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi
- Power - Max:
- 5 W
- Features:
- Cable - 150mm
- Termination:
- U.FL (UMCC), I-PEX MHF1
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 0.008" (0.20mm)
- Applications:
- GPS, ISM, LTE, Wi-Fi
| Image |  |
 |
 |
 |

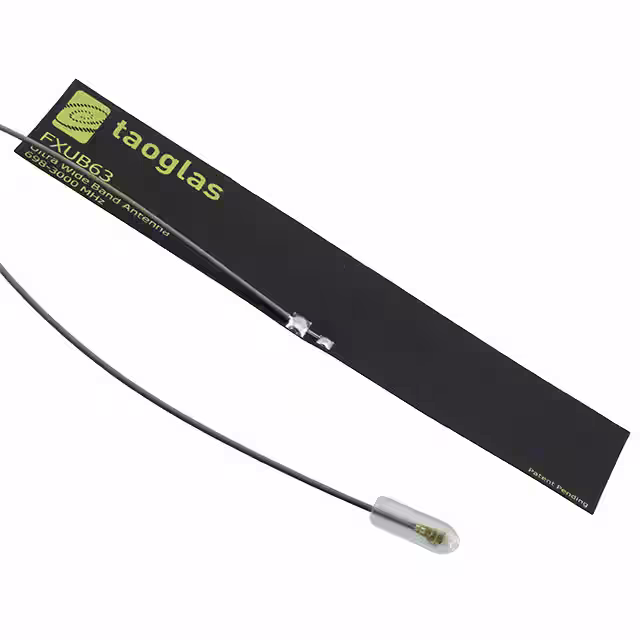

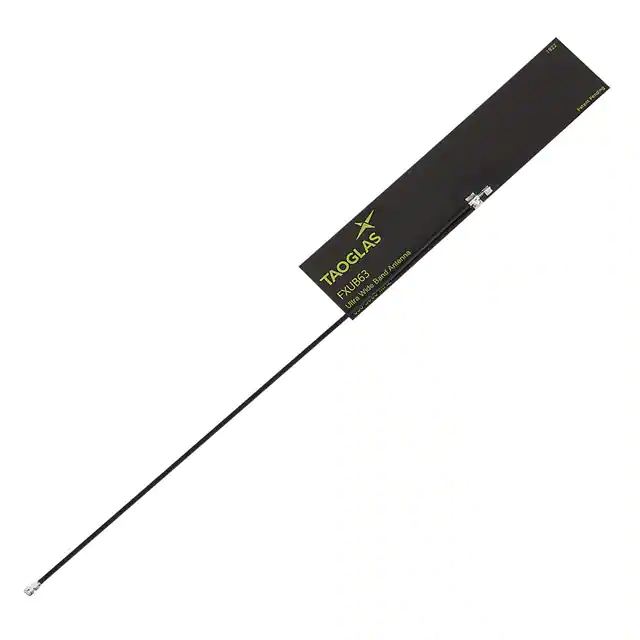

| Part Number | FXUB63.07.0150C | FXUB63.54.0150C | FXUB63.24.0150B | FXUB63.01.0150C |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - | * |
| Packaging | Bag | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | AGPS, Cellular, General ISM, WiFi | AGPS, Cellular, General ISM, WiFi | - | - |
| Frequency Group | Wide Band | Wide Band | - | - |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 829MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | - | - |
| Frequency Range | 600MHz ~ 6GHz | 698MHz ~ 3GHz | - | - |
| Antenna Type | Flat Patch | Flat Patch | - | - |
| Number of Bands | 8 | 6 | - | - |
| VSWR | 2, 2, 1.8, 1.7, 1.7, 2.3 | 1.8, 1.9, 2, 5.2 | - | - |
| Return Loss | - | -3.4dB, -9.7dB, -9.8dB, -10.5dB, -10.7dB | - | - |
| Gain | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi | 4.5dBi, 2.33dBi, 4.6dBi, 4.7dBi, 4.4dBi, 4dBi | - | - |
| Power - Max | 5 W | 5 W | - | - |
| Features | Cable - 150mm | Cable - 150mm | - | - |
| Termination | U.FL (UMCC), I-PEX MHF1 | I-PEX MHF4L | - | - |
| Ingress Protection | - | - | - | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | - |
| Height (Max) | 0.008" (0.20mm) | 0.008" (0.20mm) | - | - |
| Applications | GPS, ISM, LTE, Wi-Fi | GPS, ISM, LTE, Wi-Fi | - | - |
