Taoglas Limited FW.24.NTY.M
- Part No.:
- FW.24.NTY.M
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
FW.24.NTY.M.pdf
- Description:
- RF ANT 2.4GHZ WHIP STR N MALE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FW.24.NTY.M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Bluetooth, WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz)
- Frequency (Center/Band):
- 2.4GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz
- Antenna Type:
- Whip, Straight
- Number of Bands:
- 1
- VSWR:
- 3
- Return Loss:
- -
- Gain:
- 4.5dBi
- Power - Max:
- 2 W
- Features:
- -
- Termination:
- N Type Male
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 12.440" (315.97mm)
- Applications:
- Bluetooth, WLAN
| Image |  |
 |
 |
 |
 |

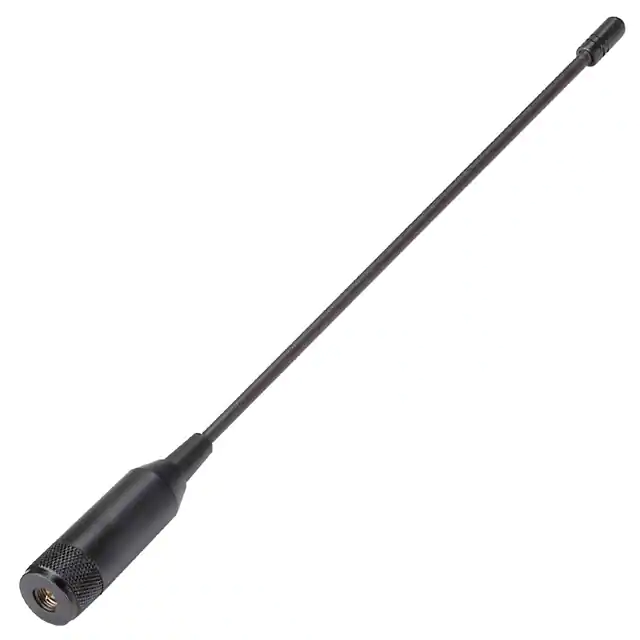

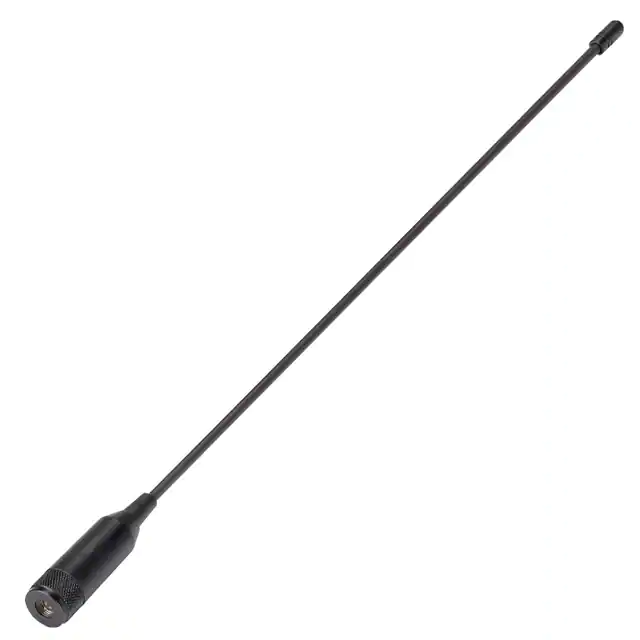

| Part Number | FW.95.B.SMA.M | FW.90.SMA.M | FW.24.NTY.M | FW.86.B.SMA.M | FW.24.SMA.M |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | Meteor | - | - | Meteor | Meteor |
| Packaging | Bulk | Bag | Bag | Bulk | Bag |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | General ISM | Cellular | Bluetooth, WiFi | General ISM | Bluetooth, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz) | Wide Band | UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 915MHz | 829MHz, 2.2GHz | 2.4GHz | 868MHz | 2.4GHz |
| Frequency Range | - | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | 2.4GHz ~ 2.5GHz | - | 2.4GHz ~ 2.5GHz |
| Antenna Type | Whip, Straight | Whip, Straight | Whip, Straight | Whip, Straight | Whip, Straight |
| Number of Bands | 1 | 2 | 1 | 1 | 1 |
| VSWR | 2 | - | 3 | 2 | 3 |
| Return Loss | -10dB | - | - | -10dB | -10dB |
| Gain | 2.7dBi | 2.02dBi, 4.65dBi | 4.5dBi | 2.8dBi | 4.4dBi |
| Power - Max | 2 W | - | 2 W | 2 W | 2 W |
| Features | - | - | - | - | - |
| Termination | SMA Male | SMA Male | N Type Male | SMA Male | SMA Male |
| Ingress Protection | IP65 | IP67 | IP67 | IP65 | IP67 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | Connector Mount | Connector Mount |
| Height (Max) | 8.900" (226.06mm) | 9.764" (248.00mm) | 12.440" (315.97mm) | 9.449" (240.00mm) | 12.087" (307.00mm) |
| Applications | ISM | CDMA, LTE | Bluetooth, WLAN | ISM | Bluetooth, Wi-Fi |
