onsemi FPF1204UCX
- Part No.:
- FPF1204UCX
- Manufacturer:
- onsemi
- Package:
- 4-UFBGA, WLCSP
- Datasheet:
-
FPF1204UCX.pdf
- Description:
- IC PWR SWITCH P-CHAN 1:1 4WLCSP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FPF1204UCX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- 4-UFBGA, WLCSP
- Series:
- IntelliMAX™
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Switch Type:
- General Purpose
- Number of Outputs:
- 1
- Ratio - Input:Output:
- 1:1
- Output Configuration:
- High Side
- Output Type:
- P-Channel
- Interface:
- On/Off
- Voltage - Load:
- 1.2V ~ 5.5V
- Voltage - Supply (Vcc/Vdd):
- Not Required
- Current - Output (Max):
- 2.2A
- Rds On (Typ):
- 45mOhm
- Input Type:
- Non-Inverting
- Features:
- Load Discharge, Slew Rate Controlled
- Fault Protection:
- -
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-WLCSP (0.76x0.76)

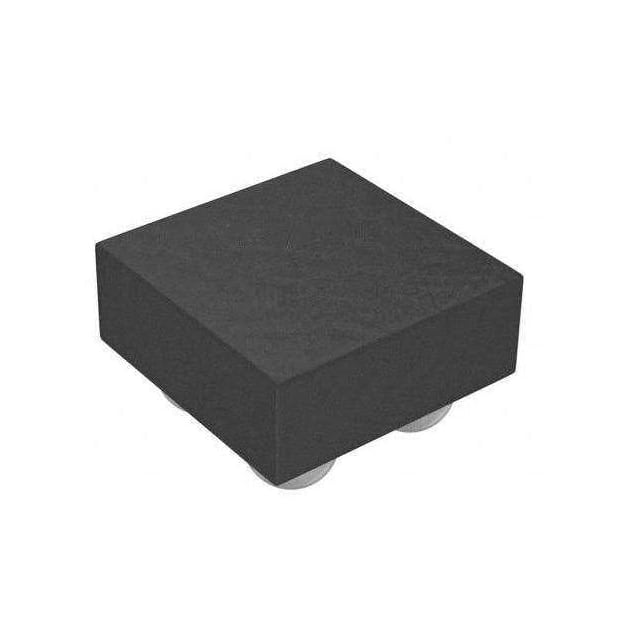

| Image |  |
|
 |
| Part Number | FPF1204UCX | FPF1204UCX-Z006 | FPF1204UCX-F013 |
| Manufacturer | onsemi | onsemi | onsemi |
| Package/Case | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | - |
| Series | IntelliMAX™ | IntelliMAX™ | * |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Obsolete | Active |
| Switch Type | General Purpose | General Purpose | - |
| Number of Outputs | 1 | 1 | - |
| Ratio - Input:Output | 1:1 | 1:1 | - |
| Output Configuration | High Side | High Side | - |
| Output Type | P-Channel | P-Channel | - |
| Interface | On/Off | On/Off | - |
| Voltage - Load | 1.2V ~ 5.5V | 1.2V ~ 5.5V | - |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | - |
| Current - Output (Max) | 2.2A | 2.2A | - |
| Rds On (Typ) | 45mOhm | 185mOhm | - |
| Input Type | Non-Inverting | Non-Inverting | - |
| Features | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | - |
| Fault Protection | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - |
| Supplier Device Package | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | - |
