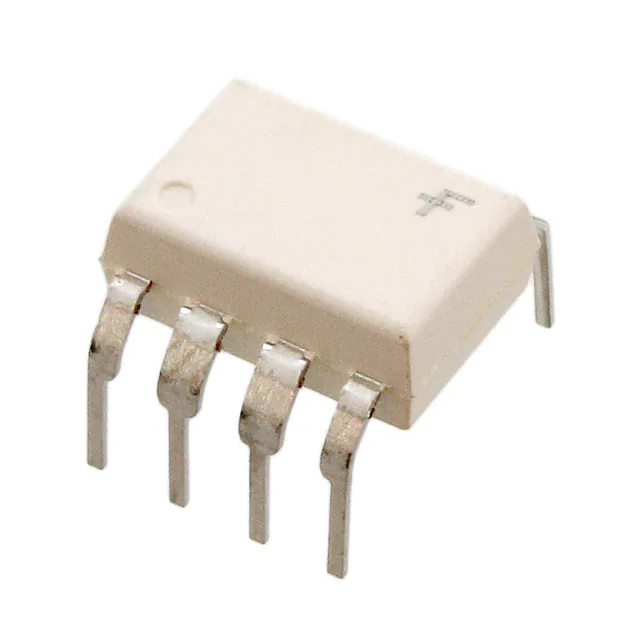

onsemi FOD3180

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

-

Package/Case:

8-DIP (0.300", 7.62mm)

Packaging:

Tube

Product Status:

Active

Technology:

Optical Coupling

Number of Channels:

1

Voltage - Isolation:

5000Vrms

Common Mode Transient Immunity (Min):

15kV/µs

Propagation Delay tpLH / tpHL (Max):

200ns, 200ns

Pulse Width Distortion (Max):

65ns

Rise / Fall Time (Typ):

75ns, 55ns

Current - Output High, Low:

2A, 2A

Current - Peak Output:

2.5A

Voltage - Forward (Vf) (Typ):

1.43V

Current - DC Forward (If) (Max):

25 mA

Voltage - Output Supply:

10V ~ 20V

Grade:

-

Qualification:

-

Operating Temperature:

-40°C ~ 100°C

Mounting Type:

Through Hole

Supplier Device Package:

8-DIP

Approval Agency:

cUL, UL
