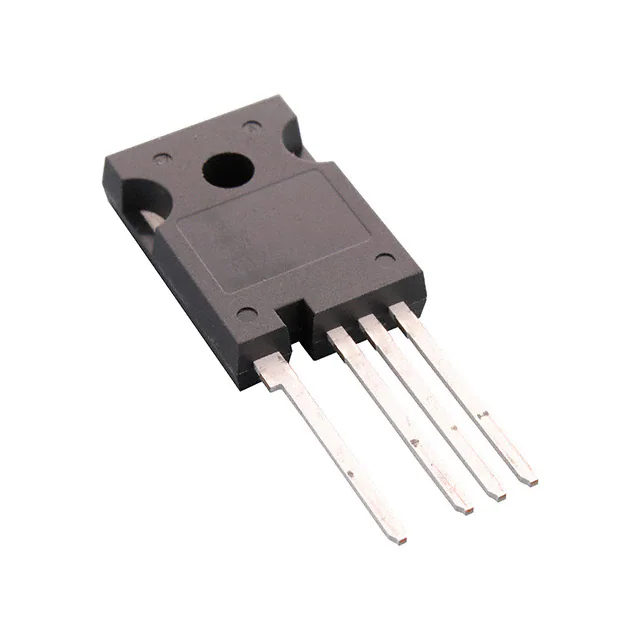

onsemi FGH75T65SHD-F155

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

-

Package/Case:

TO-247-3

Packaging:

Tube

Product Status:

Active

IGBT Type:

Trench Field Stop

Voltage - Collector Emitter Breakdown (Max):

650 V

Current - Collector (Ic) (Max):

150 A

Current - Collector Pulsed (Icm):

225 A

Vce(on) (Max) @ Vge, Ic:

2.1V @ 15V, 75A

Power - Max:

455 W

Switching Energy:

2.4mJ (on), 720µJ (off)

Input Type:

Standard

Gate Charge:

123 nC

Td (on/off) @ 25°C:

28ns/80ns

Test Condition:

400V, 75A, 3Ohm, 15V

Reverse Recovery Time (trr):

43.4 ns

Operating Temperature:

-55°C ~ 175°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Through Hole

Supplier Device Package:

TO-247-3
