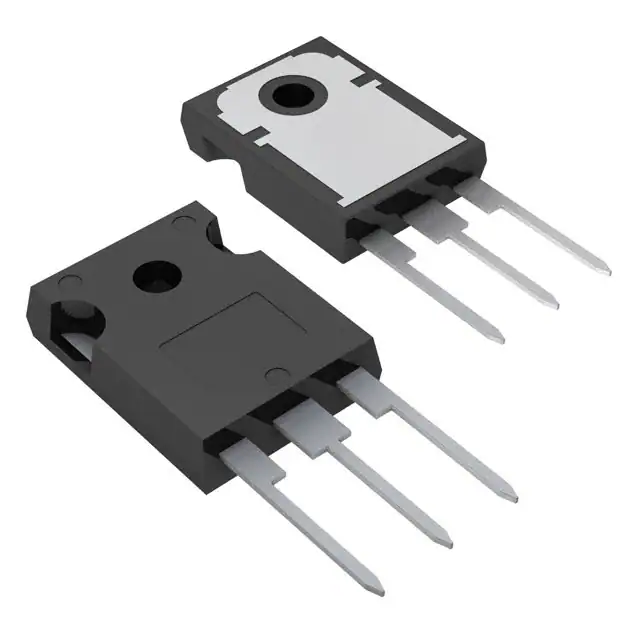

STMicroelectronics STGW30H60DFB

Product attributes

Attribute value

Manufacturer:

STMicroelectronics

Series:

-

Package/Case:

TO-247-3

Packaging:

Tube

Product Status:

Active

IGBT Type:

Trench Field Stop

Voltage - Collector Emitter Breakdown (Max):

600 V

Current - Collector (Ic) (Max):

60 A

Current - Collector Pulsed (Icm):

120 A

Vce(on) (Max) @ Vge, Ic:

2V @ 15V, 30A

Power - Max:

260 W

Switching Energy:

383µJ (on), 293µJ (off)

Input Type:

Standard

Gate Charge:

149 nC

Td (on/off) @ 25°C:

37ns/146ns

Test Condition:

400V, 30A, 10Ohm, 15V

Reverse Recovery Time (trr):

53 ns

Operating Temperature:

-55°C ~ 175°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Through Hole

Supplier Device Package:

TO-247
