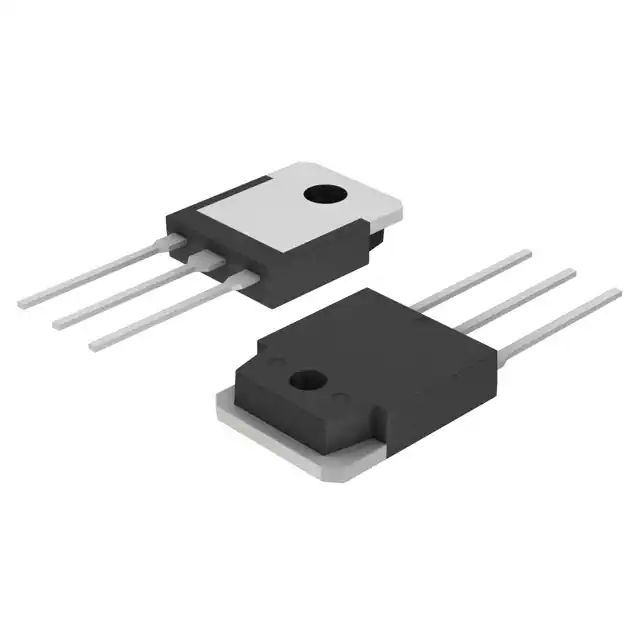

onsemi FGA40T65SHD

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

-

Package/Case:

TO-3P-3, SC-65-3

Packaging:

Tube

Product Status:

Active

IGBT Type:

Trench Field Stop

Voltage - Collector Emitter Breakdown (Max):

650 V

Current - Collector (Ic) (Max):

80 A

Current - Collector Pulsed (Icm):

120 A

Vce(on) (Max) @ Vge, Ic:

2.1V @ 15V, 40A

Power - Max:

268 W

Switching Energy:

1.01mJ (on), 297µJ (off)

Input Type:

Standard

Gate Charge:

72.2 nC

Td (on/off) @ 25°C:

19.2ns/65.6ns

Test Condition:

400V, 40A, 6Ohm, 15V

Reverse Recovery Time (trr):

31.8 ns

Operating Temperature:

-55°C ~ 175°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Through Hole

Supplier Device Package:

TO-3PN
