Analog Devices Inc. EVAL-SSM2380Z
- Part No.:
- EVAL-SSM2380Z
- Manufacturer:
- Analog Devices Inc.
- Category:
- Audio Amplifier Evaluation Boards
- Package:
- Datasheet:
-
EVAL-SSM2380Z.pdf
- Description:
- EVAL BOARD FOR SSM2380
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EVAL-SSM2380Z Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Amplifier Type:
- Class D
- Output Type:
- 2-Channel (Stereo)
- Max Output Power x Channels @ Load:
- 3.2W x 2 @ 4Ohm
- Voltage - Supply:
- -
- Utilized IC / Part:
- SSM2380
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

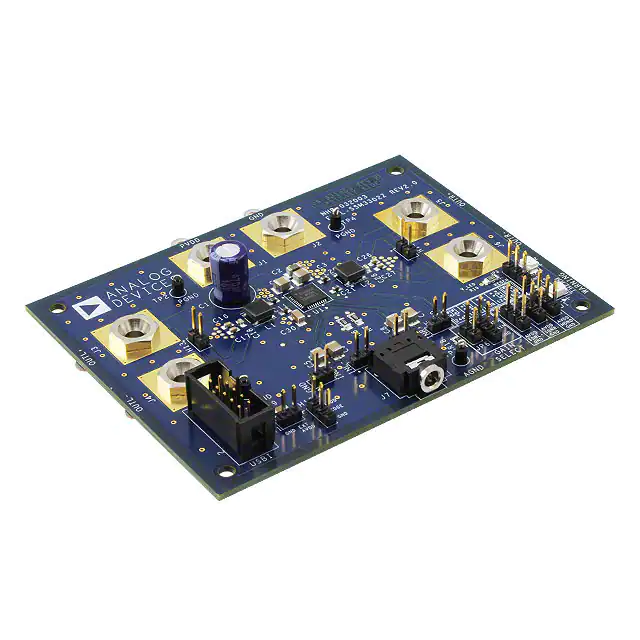

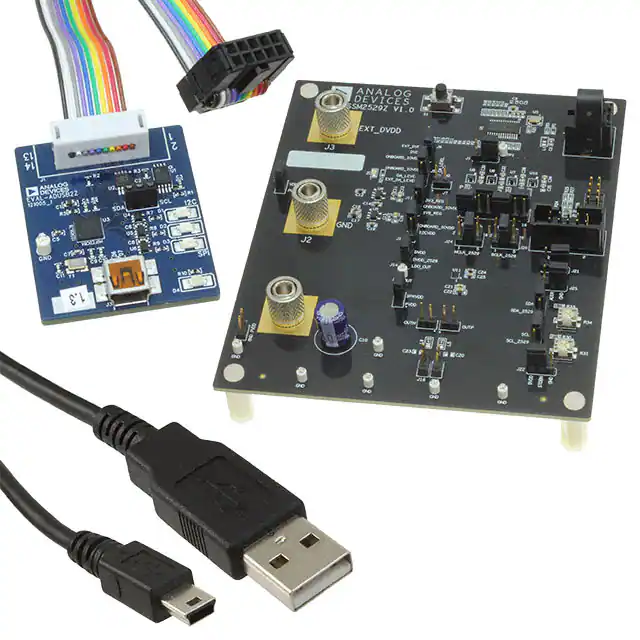

| Part Number | EVAL-SSM2380Z | EVAL-SSM2375Z | EVAL-SSM6515Z | EVAL-SSM2529Z | EVAL-SSM3302Z |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Bulk | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | Class D | Class D | Class D | Class D | Class D |
| Output Type | 2-Channel (Stereo) | 1-Channel (Mono) | 1-Channel (Mono) | 1-Channel (Mono) | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 3.2W x 2 @ 4Ohm | 3.7W x 1 @ 3Ohm | 160mW x 1 @ 8Ohm | 3.1W x 1 @ 4Ohm | 36.6W x 1 @ 2Ohm; 24W x 2 @ 4Ohm |
| Voltage - Supply | - | 2.5V ~ 5.5V | 1.7V ~ 1.98V | 2.5V ~ 5.5V | 7V ~ 18V |
| Utilized IC / Part | SSM2380 | SSM2375 | SSM6515 | SSM2529 | SSM3302 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
