STMicroelectronics STEVAL-CCA044V1
- Part No.:
- STEVAL-CCA044V1
- Manufacturer:
- STMicroelectronics
- Category:
- Audio Amplifier Evaluation Boards
- Package:
- Datasheet:
-
STEVAL-CCA044V1.pdf
- Description:
- EVAL BOARD FOR TDA7498E
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
STEVAL-CCA044V1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Amplifier Type:
- Class D
- Output Type:
- 1-Channel (Mono) or 2-Channel (Stereo)
- Max Output Power x Channels @ Load:
- 220W x 1 @ 4Ohm; 160W x 2 @ 4Ohm
- Voltage - Supply:
- 14V ~ 36V
- Utilized IC / Part:
- TDA7498E
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

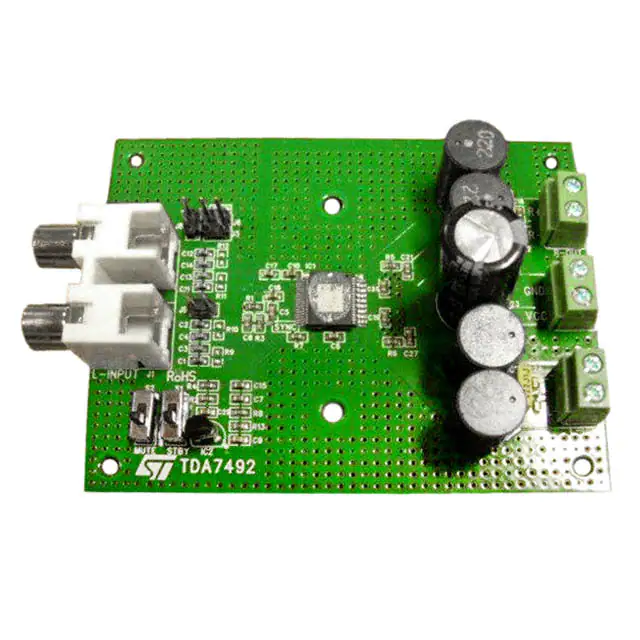

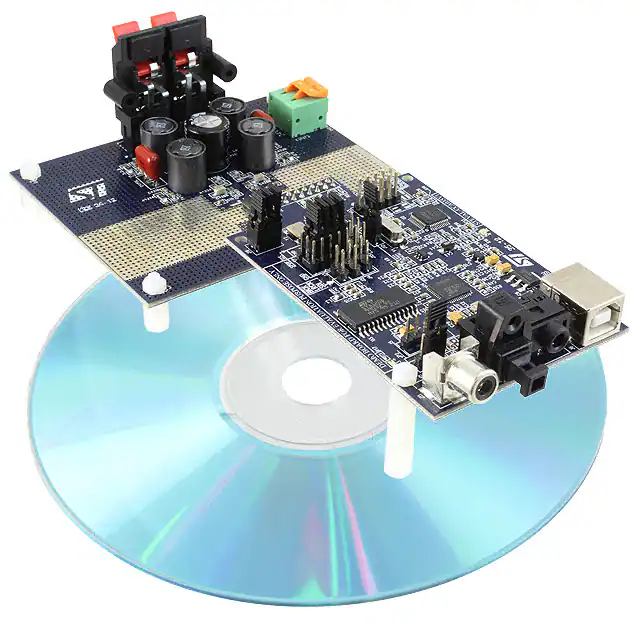

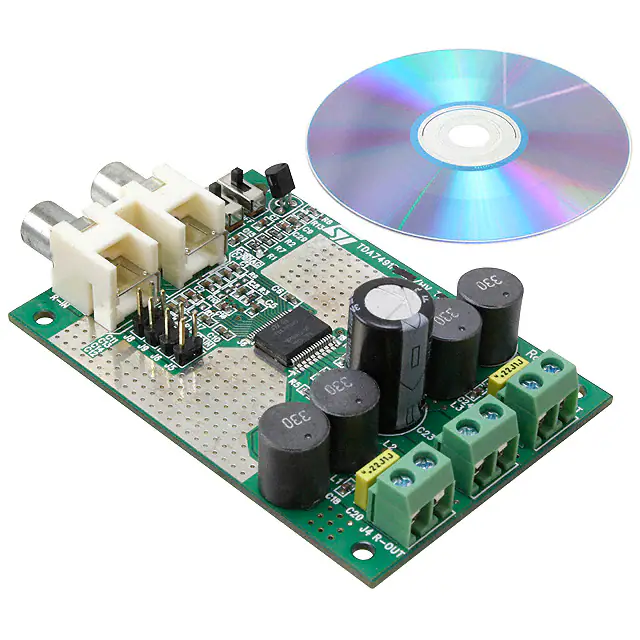

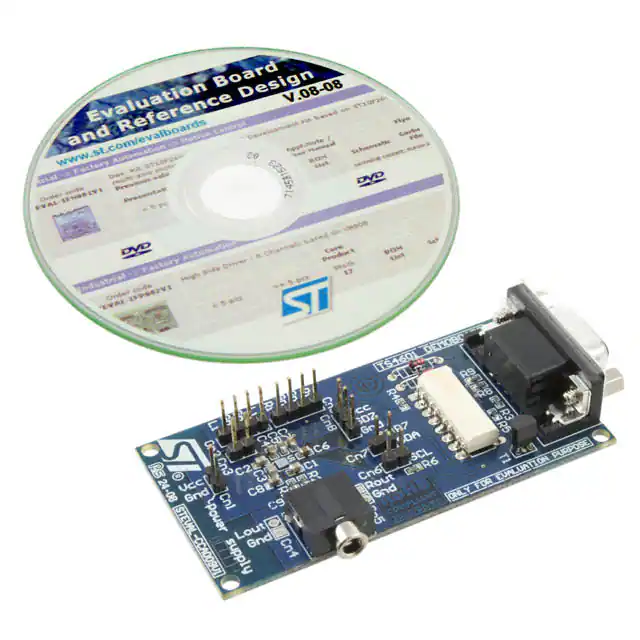

| Part Number | STEVAL-CCA044V1 | STEVAL-CCA042V1 | STEVAL-CCA027V1 | STEVAL-CCA009V1 | STEVAL-CCA030V1 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Series | - | - | - | - | Sound Terminal™ |
| Packaging | Bulk | Bulk | Bulk | Box | Bulk |
| Product Status | Active | Active | Active | Obsolete | Active |
| Amplifier Type | Class D | Class D | Class D | Class AB | Class D |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | Headphones, 2-Channel (Stereo) | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 220W x 1 @ 4Ohm; 160W x 2 @ 4Ohm | 20W x 2 @ 8Ohm | 50W x 2 @ 6Ohm | 10mW x 2 @ 16Ohm | 50W x 2 @ 6Ohm |
| Voltage - Supply | 14V ~ 36V | 5V ~ 18V | 8V ~ 26V | 2.9V ~ 5.5V | 5V ~ 26V |
| Utilized IC / Part | TDA7498E | TDA7491HV | TDA7492 | TS4601 | STA350BW |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
