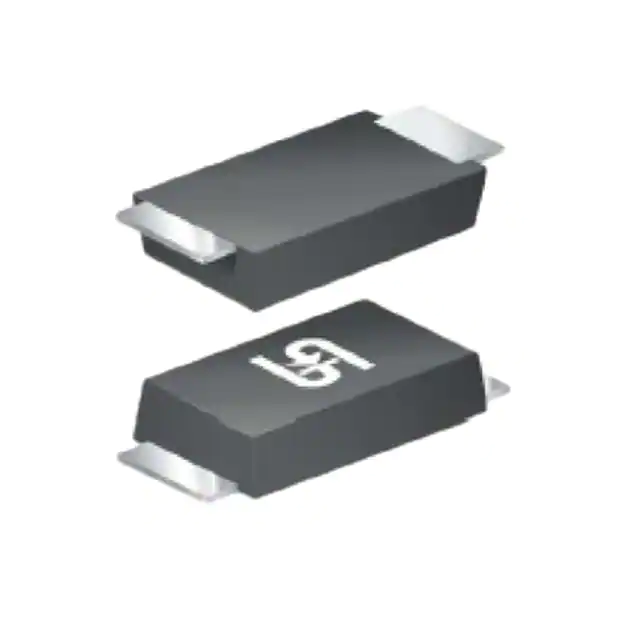

Taiwan Semiconductor Corporation ES1JLW

Product attributes

Attribute value

Manufacturer:

Taiwan Semiconductor Corporation

Series:

-

Package/Case:

SOD-123W

Packaging:

Tape & Reel (TR)

Product Status:

Active

Technology:

Standard

Voltage - DC Reverse (Vr) (Max):

600 V

Current - Average Rectified (Io):

1A

Voltage - Forward (Vf) (Max) @ If:

1.7 V @ 1 A

Speed:

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr):

35 ns

Current - Reverse Leakage @ Vr:

5 µA @ 600 V

Capacitance @ Vr, F:

20pF @ 4V, 1MHz

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

SOD-123W

Operating Temperature - Junction:

-55°C ~ 175°C
