Ezurio EFF6989A3S-19MHF1
- Part No.:
- EFF6989A3S-19MHF1
- Manufacturer:
- Ezurio
- Category:
- RF Antennas
- Package:
- Description:
- EMBED,REVIE700,MHF1
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EFF6989A3S-19MHF1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Ezurio
- Series:
- Revie Flex 700
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Cellular
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.89GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz
- Frequency Range:
- 698MHz ~ 6GHz
- Antenna Type:
- -
- Number of Bands:
- 12
- VSWR:
- 2.1, 2.4, 2, 2.3, 1.9, 1.8, 1.7, 1.4, 1.7, 2.1, 1.7, 1.5
- Return Loss:
- -
- Gain:
- 0.5dBi, 0.9dBi, 2dBi, 3.7dBi, 4.1dBi, 3.6dBi, 3.5dBi, 3.7dBi, 3.4dBi, 3dBi, 2.4dBi, 4dBi
- Power - Max:
- 5 W
- Features:
- Cable - 190mm
- Termination:
- U.FL
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 0.008" (0.20mm)
- Applications:
- CAT-M1, Cellular, LTE, NB-IOT, 4G, 5G

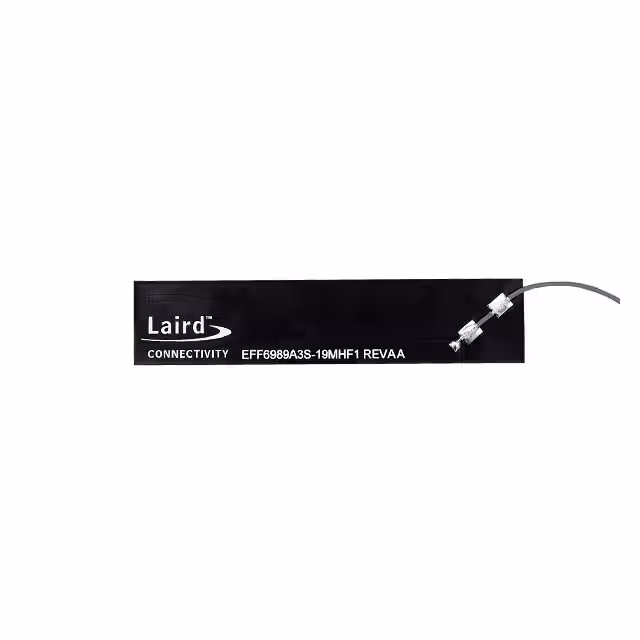

| Image |  |
 |
| Part Number | EFF6989A3S-19MHF1 | EFF6989A3S-19MH4L |
| Manufacturer | Ezurio | Ezurio |
| Series | Revie Flex 700 | - |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| RF Family/Standard | Cellular | Cellular |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.89GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.785GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz |
| Frequency Range | 698MHz ~ 6GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.55GHz ~ 1.69GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9 |
| Antenna Type | - | PCB Trace |
| Number of Bands | 12 | 12 |
| VSWR | 2.1, 2.4, 2, 2.3, 1.9, 1.8, 1.7, 1.4, 1.7, 2.1, 1.7, 1.5 | 2, 2.2, 2.5 |
| Return Loss | - | - |
| Gain | 0.5dBi, 0.9dBi, 2dBi, 3.7dBi, 4.1dBi, 3.6dBi, 3.5dBi, 3.7dBi, 3.4dBi, 3dBi, 2.4dBi, 4dBi | 0.9dBi, 1.4dBi, 2.7dBi, 4dBi, 4.2dBi, 4.1dBi, 3.7dBi, 3.9dBi, 3.7dBi, 3.5dBi, 3.3dBi, 4.5dBi |
| Power - Max | 5 W | 5 W |
| Features | Cable - 190mm | Cable - 190mm |
| Termination | U.FL | I-PEX MHF4L |
| Ingress Protection | - | - |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Adhesive | Adhesive |
| Height (Max) | 0.008" (0.20mm) | 0.008" (0.20mm) |
| Applications | CAT-M1, Cellular, LTE, NB-IOT, 4G, 5G | 4G, 5G, LTE |
