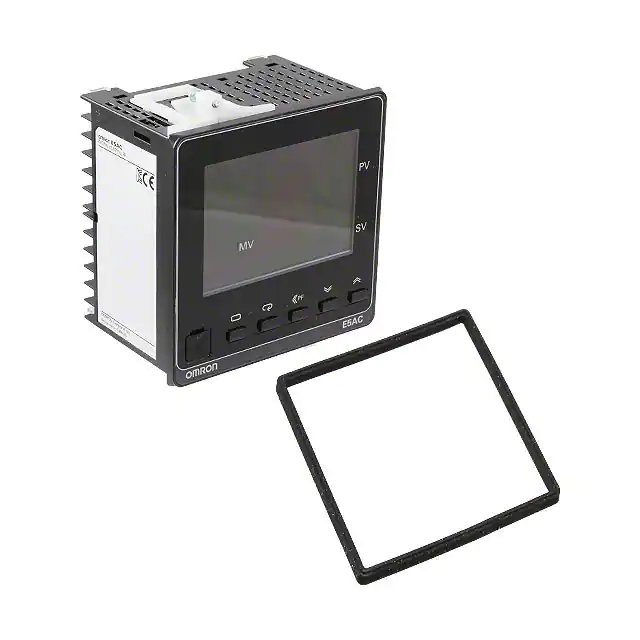

Omron Automation and Safety E5AC-TCX4A5M-004

Name: E5AC-TCX4A5M-004
Brand: Omron Automation and Safety
SKU: E5AC-TCX4A5M-004
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: E5AC-TCX4A5M-004

Manufacturer:: Omron Automation and Safety

Category:: Process, Temperature

Package:

Datasheet:: E5AC-TCX4A5M-004.pdf

Description:: CONTROL TEMP/PROCESS 100-240V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

E5AC-TCX4A5M-004 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: E5AC-T

Packaging:: Bulk

Product Status:: Active

Type:: Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)

Input Range:: -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC

Output Type:: Analog, Relay (4)

Control Method:: On/Off, Proportional (PID)

Communications:: RS-485 (CompoWay/F, Modbus)

Number of Characters Per Row:: 4, 4, 4

Display Type:: LCD - Tri Color Characters, Backlight

Display Characters - Height:: 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm)

Voltage - Supply:: 100 ~ 240VAC

Panel Cutout Dimensions:: Square - 92.00mm x 92.00mm

Mounting Type:: Panel Mount

Termination Style:: Screw Terminal

Ingress Protection:: IP66 - Dust Tight, Water Resistant

Features:: Event Input

Part Number	E5AC-QX4A5M-000	E5AC-TCX4A5M-004	E5AC-RX1ASM-800	E5AC-QX4D5M-000	E5AC-CQ4A5M-000
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	E5AC	E5AC-T	E5AC	E5AC	E5AC
Packaging	Box	Bulk	Bulk	Box	Bulk
Product Status	Active	Active	Active	Active	Active
Type	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Input Range	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output Type	Relay (4), Voltage (External SSR)	Analog, Relay (4)	Relay (2)	Relay (4), Voltage (External SSR)	Analog, Relay (4), Voltage (External SSR)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Communications	-	RS-485 (CompoWay/F, Modbus)	-	-	-
Number of Characters Per Row	4, 4, 4	4, 4, 4	4, 4	4, 4, 4	4, 4, 4
Display Type	LCD - Tri Color Characters, Backlight	LCD - Tri Color Characters, Backlight	LCD - Dual Color Characters, Backlight	LCD - Tri Color Characters, Backlight	LCD - Tri Color Characters, Backlight
Display Characters - Height	0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm)	0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm)	0.984" (25.00mm), 0.590" (15.00mm)	0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm)	0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm)
Voltage - Supply	100 ~ 240VAC	100 ~ 240VAC	100 ~ 240VAC	24VAC/DC	100 ~ 240VAC
Panel Cutout Dimensions	Square - 92.00mm x 92.00mm	Square - 92.00mm x 92.00mm	Square - 92.00mm x 92.00mm	Square - 92.00mm x 92.00mm	Square - 92.00mm x 92.00mm
Mounting Type	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Termination Style	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Ingress Protection	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant	IP66 - Dust Tight, Water Resistant
Features	-	Event Input	-	-	-
