Analog Devices Inc./Maxim Integrated DS2413P+T&R
- Part No.:
- DS2413P+T&R
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- 6-SMD, J-Lead
- Description:
- IC ADDRESSABLE SWITCH 6TSOC
- Quantity:
Unit Price:$4.17
Ext Price:$4.17
- Payment:
- Shipping:
Product Details
DS2413P+T&R - 1-Wire Dual-Channel Addressable Switch
DS2413P+T&R from Analog Devices / Maxim Integrated is a two-channel, open-drain 1-Wire addressable I/O device supplied as a six-pin TSOC on tape and reel.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
DS2413P+T&R provides two independently addressable open-drain PIO channels and a factory-programmed 64-bit 1-Wire ROM identity. Communication and parasitic power use the IO terminal.
Key Advantages
Two programmable 20 mA sink-capable channels share one 1-Wire connection.
The six-pin TSOC supports compact surface-mount assembly.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Dual-channel addressable 1-Wire switch
1-Wire bus, standard or overdrive speed
2.8 V to 5.25 V, 0 C to +70 C
6-SMD, J-Lead

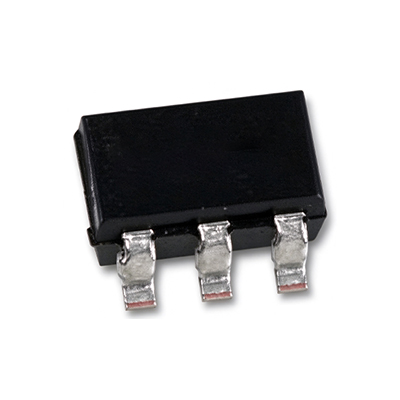

Package & Footprint
This ordering code uses the 6-SMD, J-Lead package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Function | Dual-channel addressable switch |
|---|---|
| PIO channels | 2 |
| PIO topology | Open drain |
| Continuous sink current | 20 mA maximum per PIO |
| PIO off-state voltage | 28 V maximum |
| PIO on-resistance | 20 Ohm maximum |
| 1-Wire pull-up voltage | 2.8 V to 5.25 V, standard speed |
| Operating temperature | 0 C to +70 C |
| Identification | Unique 64-bit ROM number |
| Supply | Parasitic power from 1-Wire |
| Package | 6-pin TSOC |
| Ordering format | Tape and reel, 4,000 standard pack |
Replacement Considerations
DS2413P+ is a related product in the library. Confirm electrical behavior, package, pinout, ordering media and configuration before substitution.
Similarity of family name or package does not establish drop-in compatibility.
Manufacturer Information
Analog Devices supports the former Maxim Integrated 1-Wire I/O portfolio.
Applications
The host can identify and control a remote accessory over one 1-Wire bus.
Two addressed channels can drive small loads or sense remote logic states.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Dual-channel addressable 1-Wire switch
What package is used?
6-SMD, J-Lead
Can the related part be substituted directly?
No. Validate all electrical, mechanical and configuration differences first.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
DS2413P+T&R Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- 6-SMD, J-Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Addressable Switch
- Applications:
- Accessory ID and Control, Industrial Controllers, LED Control, System Monitoring
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-TSOC
- Grade:
- -
- Qualification:
- -
