TDK Corporation DPX205925DT-4226A2
- Part No.:
- DPX205925DT-4226A2
- Manufacturer:
- TDK Corporation
- Category:
- RF Multiplexers
- Package:
- 0805 (2012 Metric), 6 PC Pad
- Datasheet:
-
DPX205925DT-4226A2.pdf
- Description:
- MULTILAYER DIPLEXER FOR LTE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DPX205925DT-4226A2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- -
- Package/Case:
- 0805 (2012 Metric), 6 PC Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Diplexer
- Frequency Bands (Low / High):
- 3.3GHz ~ 3.8GHz / 4.4GHz ~ 5.925GHz
- Low Band Attenuation (min / max dB):
- 15.00db / 18.00dB
- High Band Attenuation (min / max dB):
- 15.00dB / 17.70dB
- Return Loss (Low Band / High Band):
- 10.0dB / 10.0dB
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount

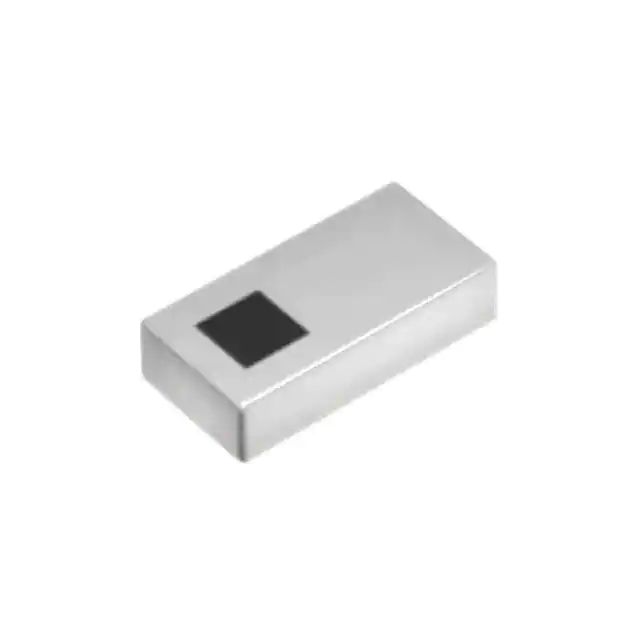

| Image |  |
 |
| Part Number | DPX205925DT-4226A2 | DPX205925DT-4213A4 |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | - | - |
| Package/Case | 0805 (2012 Metric), 6 PC Pad | 0805 (2012 Metric), 6 PC Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | Diplexer | Diplexer |
| Frequency Bands (Low / High) | 3.3GHz ~ 3.8GHz / 4.4GHz ~ 5.925GHz | 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz |
| Low Band Attenuation (min / max dB) | 15.00db / 18.00dB | 30.00dB / 39.90dB |
| High Band Attenuation (min / max dB) | 15.00dB / 17.70dB | 30.00dB / 37.10dB |
| Return Loss (Low Band / High Band) | 10.0dB / 10.0dB | - |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
