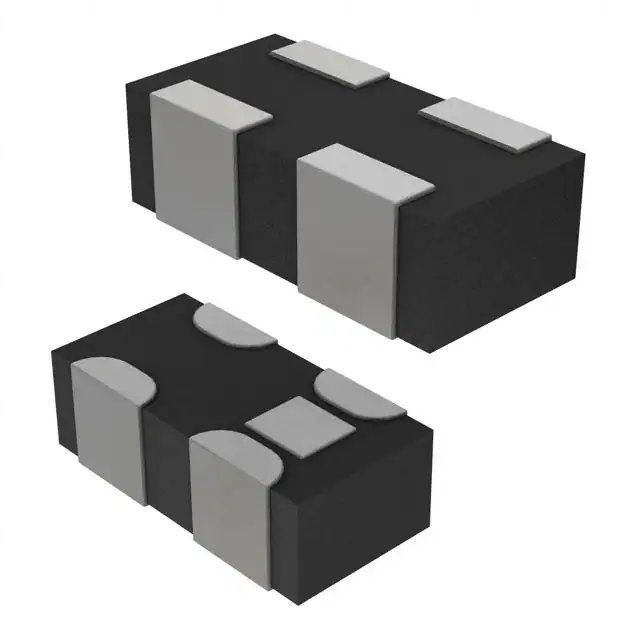

TDK Corporation DPX105950DT-6012A2
- Part No.:
- DPX105950DT-6012A2
- Manufacturer:
- TDK Corporation
- Category:
- RF Multiplexers
- Package:
- 0402 (1005 Metric), 4 PC Pad
- Datasheet:
-
DPX105950DT-6012A2.pdf
- Description:
- MULTILAYER DIPLEXER FOR LTE/5GHZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DPX105950DT-6012A2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- -
- Package/Case:
- 0402 (1005 Metric), 4 PC Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Diplexer
- Frequency Bands (Low / High):
- 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
- Low Band Attenuation (min / max dB):
- 23.00dB / 29.00dB
- High Band Attenuation (min / max dB):
- 32.00dB / 41.00dB
- Return Loss (Low Band / High Band):
- 10.0dB / 10.0dB
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
| Part Number | DPX105950DT-6112A2 | DPX105950DT-6012A2 | DPX105950DT-6012A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation |
| Series | DPX | - | DPX |
| Package/Case | 0402 (1005 Metric), 4 PC Pad | 0402 (1005 Metric), 4 PC Pad | 0402 (1005 Metric), 4 PC Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Type | Diplexer | Diplexer | Diplexer |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz |
| Low Band Attenuation (min / max dB) | 23.00dB / 29.00dB | 23.00dB / 29.00dB | 30.00dB / - |
| High Band Attenuation (min / max dB) | 32.00dB / 41.00dB | 32.00dB / 41.00dB | 20.00dB / - |
| Return Loss (Low Band / High Band) | 10.0dB / 10.0dB | 10.0dB / 10.0dB | 10.0dB / 10.0dB |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
- Include Parts
- Popular Search
The following parts include "DPX105950DT-6012A2" in Silicon Labs DPX105950DT-6012A2.
- Part Number
- Manufacturer
- Package
- Description
- DPX202700DT-4062A1 TDK Corporation 0805 (2012 Metric), 6 PC Pad RF DIPLEXER 829MHZ/2.3GHZ 0805
- LDPQ-132-33+ Mini-Circuits 8-SMD, No Lead RF DIPLEXER 0.64/2.275GHZ 8SMD
- LDPW-162-242+ Mini-Circuits 0603 (1608 Metric), 6 PC Pad RF DIPLEXER 0.825GHZ/4.2GHZ 0603
- DPX1608LL80R2455A Pulse Electronics 0603 (1608 Metric), 6 PC Pad DIPLEXER SMD 2.4G/5G
- DPX162690DT-8058A1 TDK Corporation 0603 (1608 Metric), 6 PC Pad MULTILAYER DPX FOR GPS/LTE/5G
- DPX105950DT-6112A2 TDK Corporation 0402 (1005 Metric), 4 PC Pad MULTILAYER DIPLEXER FOR 2400 - 2
- LFD182G45DCJD247 Murata Electronics 0603 (1608 Metric), 8 PC Pad RF-D
- DPX165950DT-8148A1 TDK Corporation 0603 (1608 Metric), 6 PC Pad RF DIPLEXER 2.45/5.425GHZ 0603
- DPX165950DT-8048A1 TDK Corporation 0603 (1608 Metric), 6 PC Pad RF DIPLEXER 2.45/5.425GHZ 0603
- DPX165850DT-8032A1 TDK Corporation 0603 (1608 Metric), 4 PC Pad RF DIPLEXER 0603 4 PC PAD
