Kingbright DA03-11CGKWA
- Part No.:
- DA03-11CGKWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.400", 10.16mm)
- Datasheet:
-
DA03-11CGKWA.pdf
- Description:
- DISPLAY 7SEG 0.3" DBL GRN 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DA03-11CGKWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-DIP (0.400", 10.16mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 2
- Size / Dimension:
- 0.610" H x 0.591" W x 0.283" D (15.50mm x 15.00mm x 7.20mm)
- Digit/Alpha Size:
- 0.30" (7.62mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Green
- Voltage - Forward (Vf) (Typ):
- 2.1V
- Current - Test:
- 20mA
- Millicandela Rating:
- 16mcd
- Wavelength - Peak:
- 574nm
- Power Dissipation (Max):
- 75mW

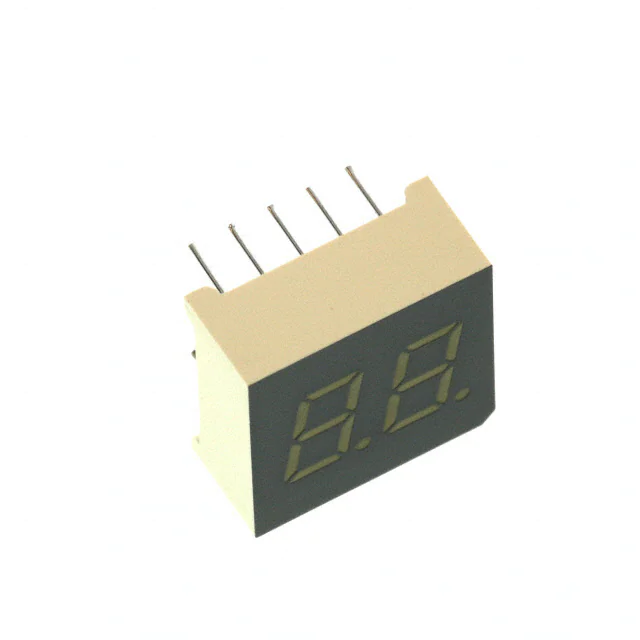

| Image |  |
 |
|
|
|
| Part Number | DA03-11EWA | DA03-11SRWA | DA03-11YWA | DA03-11CGKWA | DA03-11SURKWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) | 10-DIP (0.400", 10.16mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 2 | 2 | 2 | 2 | 2 |
| Size / Dimension | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.610" H x 0.591" W x 0.283" D (15.50mm x 15.00mm x 7.20mm) | 0.610" H x 0.591" W x 0.283" D (15.50mm x 15.00mm x 7.20mm) |
| Digit/Alpha Size | 0.30" (7.62mm) | 0.30" (7.62mm) | 0.39" (10.00mm) | 0.30" (7.62mm) | 0.30" (7.62mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Red | Yellow | Green | Red |
| Voltage - Forward (Vf) (Typ) | 2V | 1.85V | 2.1V | 2.1V | 1.95V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 3.1mcd | 15mcd | 2.2mcd | 16mcd | 47mcd |
| Wavelength - Peak | 627nm | 660nm | 590nm | 574nm | 645nm |
| Power Dissipation (Max) | 75mW | 75mW | 75mW | 75mW | 75mW |
