Luminus Devices Inc. CXM-9-27-90-36-AC30-F4-3

Name: CXM-9-27-90-36-AC30-F4-3
Brand: Luminus Devices Inc.
SKU: CXM-9-27-90-36-AC30-F4-3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CXM-9-27-90-36-AC30-F4-3

Manufacturer:: Luminus Devices Inc.

Category:: LED COBs, Engines, Modules, Strips

Package:

Datasheet:: CXM-9-27-90-36-AC30-F4-3.pdf

Description:: LED COB CXM-9 GEN3 WHT SQ 2700K

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CXM-9-27-90-36-AC30-F4-3 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Luminus Devices Inc.

Series:: CXM-9 Gen3

Packaging:: Tray

Product Status:: Active

Type:: Chip On Board (COB)

Color:: White, Warm

CCT (K):: 2700K 3-Step MacAdam Ellipse

Wavelength:: -

Configuration:: Square

Luminous Flux @ Current/Temperature:: 1390lm (Typ)

Current - Test:: 360mA

Temperature - Test:: 85°C

Voltage - Forward (Vf) (Typ):: 34V

Lumens/Watt @ Current - Test:: 114 lm/W

Current - Max:: 720mA

CRI (Color Rendering Index):: 90

Viewing Angle:: 120°

Features:: -

Size / Dimension:: 13.50mm L x 13.50mm W

Height:: 1.37mm

Light Emitting Surface (LES):: 9.60mm Dia

Lens Type:: Flat

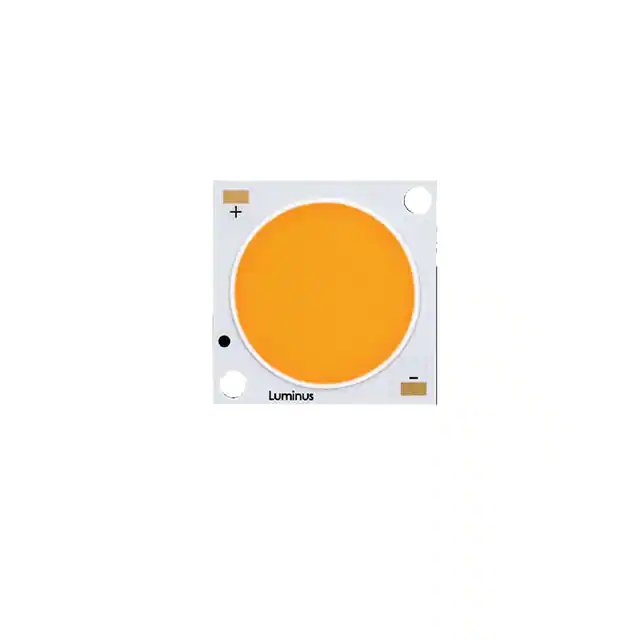

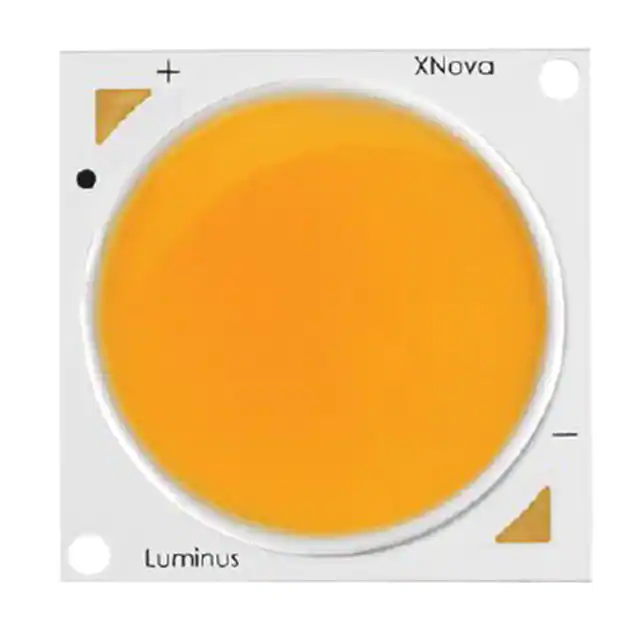

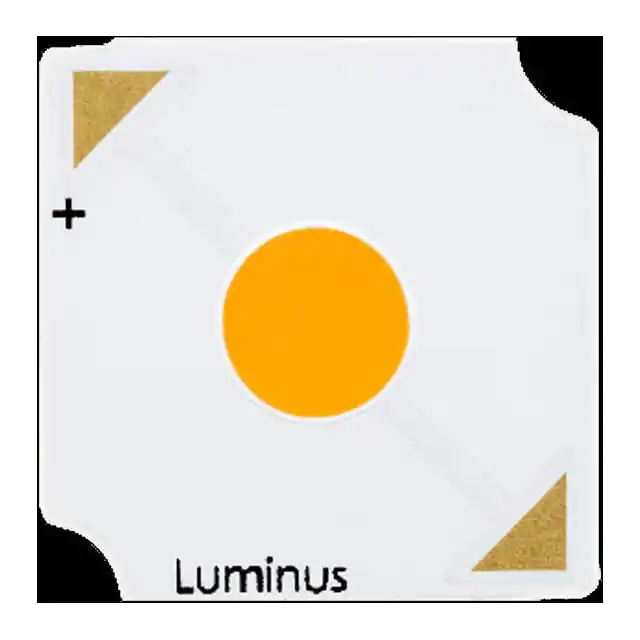

Part Number	CXM-9-27-90-36-AC30-F4-3	CXM-14-HM-61-36-AC30-P1-3	CXM-22-40-80-54-AC40-F5-3	CXM-32-50-80-54-AC30-F4-3	CXM-4-30-90-36-AC40-F5-3
Manufacturer	Luminus Devices Inc.	Luminus Devices Inc.	Luminus Devices Inc.	Luminus Devices Inc.	Luminus Devices Inc.
Series	CXM-9 Gen3	Sensus™ Horticulture	CXM-22 Gen4	CXM-32 Gen3	CXM-4
Packaging	Tray	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active	Active
Type	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)
Color	White, Warm	White	White, Neutral	White, Cool	White, Warm
CCT (K)	2700K 3-Step MacAdam Ellipse	-	4000K 3-Step MacAdam Ellipse	5000K 3-Step MacAdam Ellipse	3000K 3-Step MacAdam Ellipse
Wavelength	-	-	-	-	-
Configuration	Square	Square	Square	Square	Square
Luminous Flux @ Current/Temperature	1390lm (Typ)	-	9155lm (Typ)	18170lm (Typ)	470lm (Typ)
Current - Test	360mA	720mA	1.05A	2.2A	120mA
Temperature - Test	85°C	85°C	85°C	85°C	25°C
Voltage - Forward (Vf) (Typ)	34V	34V	50V	51V	33.8V
Lumens/Watt @ Current - Test	114 lm/W	-	174 lm/W	162 lm/W	116 lm/W
Current - Max	720mA	1.44A	3.5A	4.5A	400mA
CRI (Color Rendering Index)	90	-	80	80	90
Viewing Angle	120°	120°	120°	120°	120°
Features	-	-	-	-	-
Size / Dimension	13.50mm L x 13.50mm W	19.00mm L x 19.00mm W	28.00mm L x 28.00mm W	38.00mm L x 38.00mm W	13.50mm L x 13.50mm W
Height	1.37mm	1.37mm	1.37mm	-	1.37mm
Light Emitting Surface (LES)	9.60mm Dia	14.30mm Dia	22.00mm Dia	32.80mm Dia	4.50mm Dia
Lens Type	Flat	Flat	Flat	Flat	Flat
