Central Technologies CTVF-1-100K-10
- Part No.:
- CTVF-1-100K-10
- Manufacturer:
- Central Technologies
- Category:
- Fixed Inductors
- Package:
- Radial, Vertical Cylinder
- Description:
- 10UH RADIAL POWER INDUCTOR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CTVF-1-100K-10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Central Technologies
- Series:
- CTVF-0
- Package/Case:
- Radial, Vertical Cylinder
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Wirewound
- Material - Core:
- -
- Inductance:
- 10 µH
- Tolerance:
- ±10%
- Current Rating (Amps):
- -
- Current - Saturation (Isat):
- 10.9A
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 13mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Inductance Frequency - Test:
- 15.75 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- Radial
- Size / Dimension:
- 0.630" Dia (16.00mm)
- Height - Seated (Max):
- 1.098" (27.90mm)
| Image |  |
 |

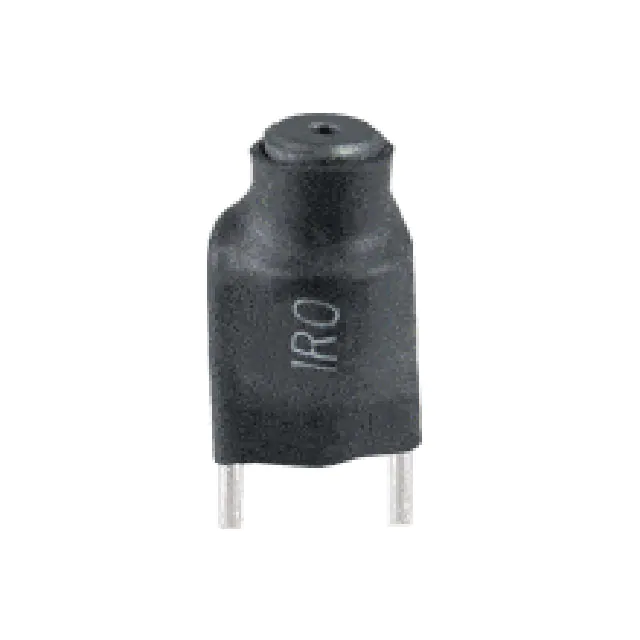

| Part Number | CTVF-0-221K-03 | CTVF-1-100K-10 |
| Manufacturer | Central Technologies | Central Technologies |
| Series | CTVF-0 | CTVF-0 |
| Package/Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 220 µH | 10 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 2.1 A | - |
| Current - Saturation (Isat) | - | 10.9A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 210mOhm Max | 13mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 15.75 kHz | 15.75 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | Radial | Radial |
| Size / Dimension | 0.551" Dia (14.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.201" (30.50mm) | 1.098" (27.90mm) |
