Panasonic Electric Works CP1-12V
- Part No.:
- CP1-12V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Automotive Relays
- Package:
- Description:
- RELAY AUTOMOTIVE SPDT 20A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CP1-12V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- CP
- Packaging:
- Tube
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 53.3 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 14VDC - Nom
- Must Operate Voltage:
- 7.2 VDC
- Must Release Voltage:
- 1 VDC
- Operate Time:
- 10 ms
- Release Time:
- 10 ms
- Features:
- Sealed - Fully
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 85°C

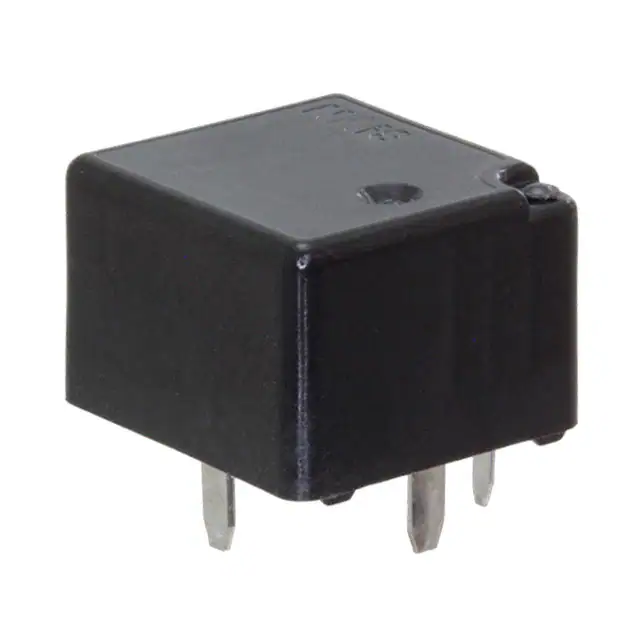

| Image |  |
|
 |
|
 |
| Part Number | CP1-12V | CP1A-12V | CP1SA-12V-X | CP1SA-12V-Z | CP1W-12V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | CP | CP | CP | CP | CP |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 53.3 mA | 53.3 mA | 53.3 mA | 53.3 mA | 53.3 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPST-NO (1 Form A) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A | 20 A | 20 A | 20 A | 6 A |
| Switching Voltage | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom |
| Must Operate Voltage | 7.2 VDC | 7.2 VDC | 7.2 VDC | 7.2 VDC | 7.2 VDC |
| Must Release Voltage | 1 VDC | 1 VDC | 1 VDC | 1 VDC | 1 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | - |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | - |
| Features | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Surface Mount | Through Hole |
| Termination Style | PC Pin | PC Pin | Gull Wing | Gull Wing | PC Pin |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
