Visual Communications Company - VCC CMD17-21VRC/TR8
- Part No.:
- CMD17-21VRC/TR8
- Manufacturer:
- Visual Communications Company - VCC
- Category:
- LED Indication - Discrete
- Package:
- 0805 (2012 Metric)
- Datasheet:
-
CMD17-21VRC/TR8.pdf
- Description:
- LED RED CLEAR 0805 SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CMD17-21VRC/TR8 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Visual Communications Company - VCC
- Series:
- CMD17-21
- Package/Case:
- 0805 (2012 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- Red
- Configuration:
- Standard
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Millicandela Rating:
- 13mcd
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 1.40mm x 1.25mm
- Voltage - Forward (Vf) (Typ):
- 2V
- Current - Test:
- 20mA
- Viewing Angle:
- 140°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- -
- Wavelength - Peak:
- 640nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 0805
- Size / Dimension:
- 2.00mm L x 1.25mm W

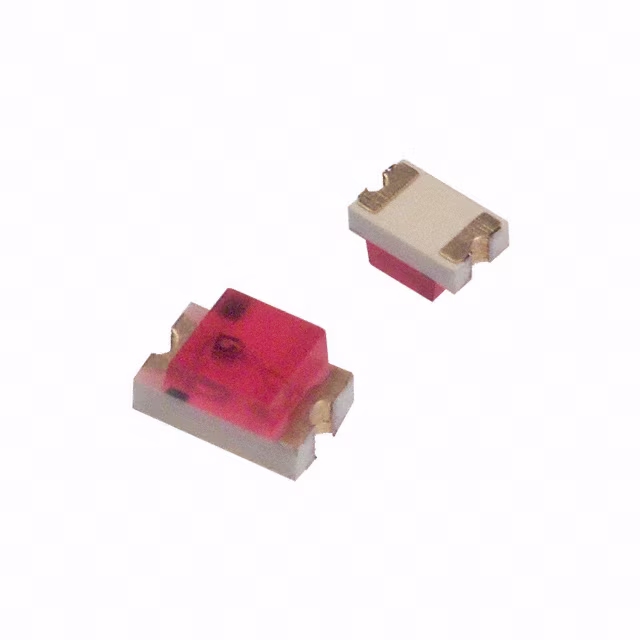

| Image |  |
|
 |
|
 |
| Part Number | CMD17-21VRC/TR8 | CMD17-21VGC/TR8 | CMD17-21VGD/TR8 | CMD17-21VYC/TR8 | CMD17-21VRD/TR8 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Series | CMD17-21 | CMD17-21 | CMD17-21 | CMD17-21 | CMD17-21 |
| Package/Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Not For New Designs | Active |
| Color | Red | Green | Green | Yellow | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Green | Colorless | Red |
| Lens Transparency | Clear | Clear | Diffused | Clear | Diffused |
| Millicandela Rating | 13mcd | 10mcd | 7mcd | 12mcd | 6mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2.1V | 2.1V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - | - |
| Wavelength - Peak | 640nm | 570nm | 570nm | 585nm | 640nm |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 0805 | 0805 | 0805 | 0805 | 0805 |
| Size / Dimension | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W |
