Powerex Inc. CM600HU-12H
- Part No.:
- CM600HU-12H
- Manufacturer:
- Powerex Inc.
- Category:
- IGBT Modules
- Package:
- Module
- Description:
- IGBT MOD 600V 600A 1560W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CM600HU-12H Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Powerex Inc.
- Series:
- IGBTMOD™
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- IGBT Type:
- -
- Configuration:
- Single
- Voltage - Collector Emitter Breakdown (Max):
- 600 V
- Current - Collector (Ic) (Max):
- 600 A
- Power - Max:
- 1560 W
- Vce(on) (Max) @ Vge, Ic:
- 3V @ 15V, 600A
- Current - Collector Cutoff (Max):
- 1 mA
- Input Capacitance (Cies) @ Vce:
- 52.8 nF @ 10 V
- Input:
- Standard
- NTC Thermistor:
- No
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Mounting Type:
- Chassis Mount
- Supplier Device Package:
- Module
| Image |  |
 |
 |
|

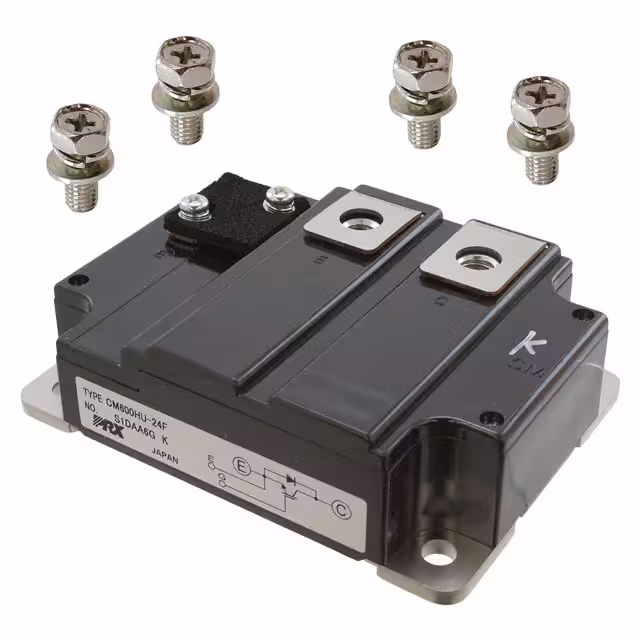

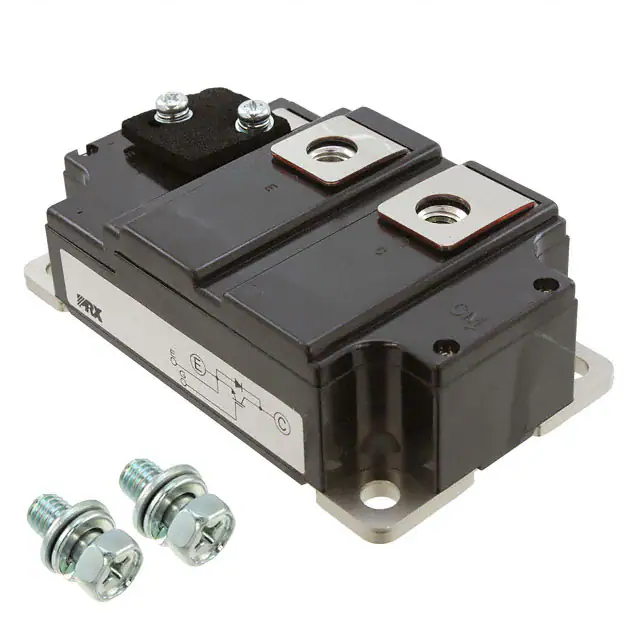

| Part Number | CM600HU-12F | CM600HU-24F | CM600HU-24H | CM600HU-12H |
| Manufacturer | Powerex Inc. | Powerex Inc. | Powerex Inc. | Powerex Inc. |
| Series | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ |
| Package/Case | Module | Module | Module | Module |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| IGBT Type | Trench | Trench | - | - |
| Configuration | Single | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 1200 V | 1200 V | 600 V |
| Current - Collector (Ic) (Max) | 600 A | 600 A | 600 A | 600 A |
| Power - Max | 1420 W | 2400 W | 3100 W | 1560 W |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A | 2.4V @ 15V, 600A | 3.7V @ 15V, 600A | 3V @ 15V, 600A |
| Current - Collector Cutoff (Max) | 1 mA | 2 mA | 2 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 160 nF @ 10 V | 230 nF @ 10 V | 90 nF @ 10 V | 52.8 nF @ 10 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | Module | Module | Module | Module |
