Citizen CL-194S-WS-SD-T
- Part No.:
- CL-194S-WS-SD-T
- Manufacturer:
- Citizen
- Category:
- LED Indication - Discrete
- Package:
- 0603 (1608 Metric)
- Datasheet:
-
CL-194S-WS-SD-T.pdf
- Description:
- LED WHITE SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CL-194S-WS-SD-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Citizen
- Series:
- CL-194S
- Package/Case:
- 0603 (1608 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- White
- Configuration:
- Standard
- Lens Color:
- -
- Lens Transparency:
- -
- Millicandela Rating:
- 260mcd
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 1.10mm x 0.80mm
- Voltage - Forward (Vf) (Typ):
- 2.9V
- Current - Test:
- 5mA
- Viewing Angle:
- -
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- -
- Wavelength - Peak:
- -
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- -
- Size / Dimension:
- 1.60mm L x 0.80mm W
| Image |  |
 |
 |
 |
 |

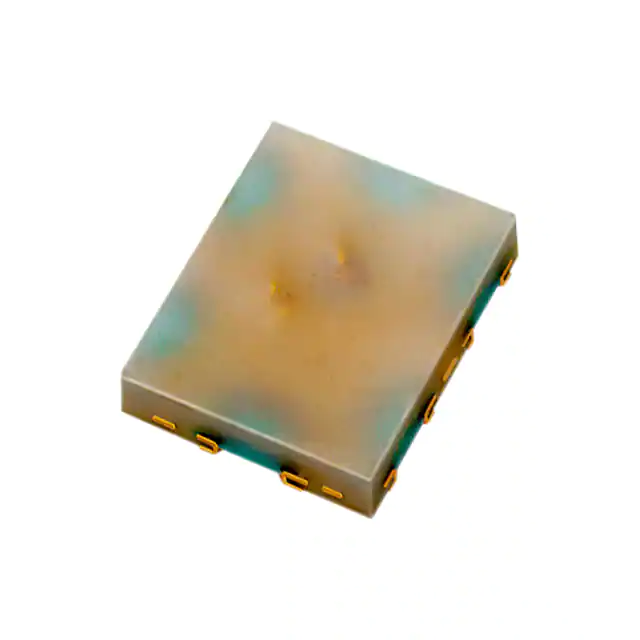

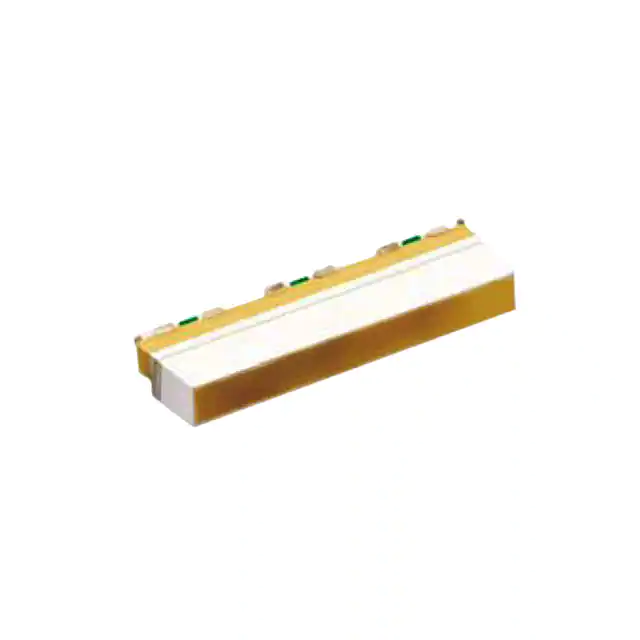

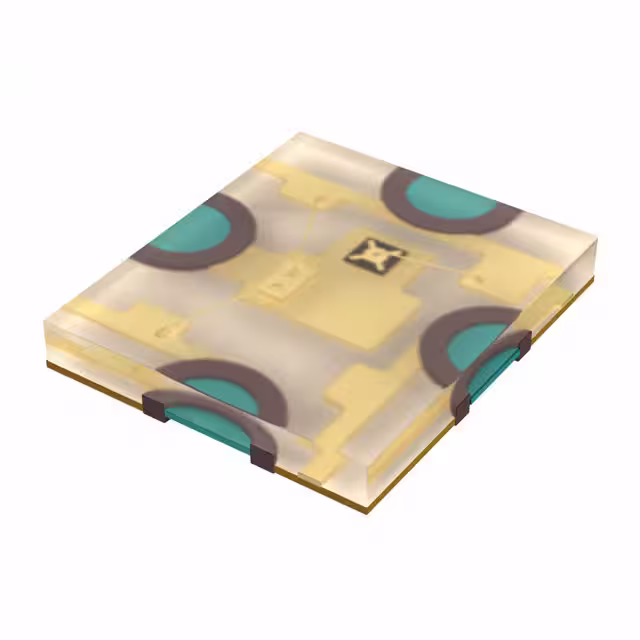

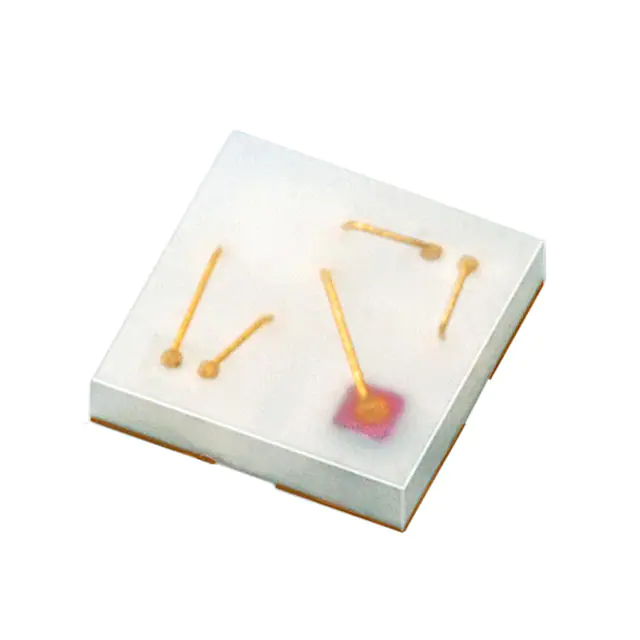

| Part Number | CL-194S-WS-SD-T | CL-503T-SD-T | CL-505S-X-SD-T | CL-340T-SD-T | CL-426F-AA-SD-TS |
| Manufacturer | Citizen | Citizen | Citizen | Citizen | Citizen |
| Series | CL-194S | CL-503 | CL-505S | CL-340 | CL-426 |
| Package/Case | 0603 (1608 Metric) | 4-SMD, No Lead | 0404 (1010 Metric) | 6-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | White | Red, Green, Blue (RGB) | Red, Green, Blue (RGB) | Red, Green, Blue (RGB) | Red, Green, Blue (RGB) |
| Configuration | Standard | Common Anode | Common Anode | Independent | Common Anode |
| Lens Color | - | - | - | - | - |
| Lens Transparency | - | - | - | - | - |
| Millicandela Rating | 260mcd | 36mcd Red, 180mcd Green, 40mcd Blue | 40mcd Red, 220mcd Green, 65mcd Blue | 36mcd Red, 180mcd Green, 40mcd Blue | 160mcd Red, 250mcd Green, 52mcd Blue |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Square with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.30mm x 1.50mm | 1.00mm | 1.40mm x 1.70mm | 2.80mm x 0.35mm |
| Voltage - Forward (Vf) (Typ) | 2.9V | 1.85V Red, 2.7V Green, 2.75V Blue | 1.85V Red, 2.7V Green, 2.75V Blue | 1.85V Red, 2.7V Green, 2.75V Blue | 1.85V Red, 2.7V Green, 2.75V Blue |
| Current - Test | 5mA | 5mA Red, 5mA Green, 5mA Blue | 5mA Red, 5mA Green, 5mA Blue | 5mA Red, 5mA Green, 5mA Blue | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle |
| Wavelength - Dominant | - | - | 615nm Red, 530nm Green, 470nm Blue | 618nm Red, 530nm Green, 470nm Blue | 628nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | - | 618nm Red, 530nm Green, 470nm Blue | - | - | - |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.50mm L x 1.30mm W | 1.00mm L x 1.00mm W | 1.70mm L x 1.40mm W | 2.80mm L x 0.85mm W |
