ams-OSRAM USA INC. CH DELSS1.22-N1P2-35-0-20-R18
- Part No.:
- CH DELSS1.22-N1P2-35-0-20-R18
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED Indication - Discrete
- Package:
- 2-SMD, Flat Leads
- Datasheet:
-
CH DELSS1.22-N1P2-35-0-20-R18.pdf
- Description:
- LED RED CLEAR SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CH DELSS1.22-N1P2-35-0-20-R18 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- FIREFLY®
- Package/Case:
- 2-SMD, Flat Leads
- Packaging:
- Bulk
- Product Status:
- Active
- Color:
- Red
- Configuration:
- Standard
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Millicandela Rating:
- -
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 1.23mm x 0.60mm
- Voltage - Forward (Vf) (Typ):
- 1.9V
- Current - Test:
- 20mA
- Viewing Angle:
- 120°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- 645nm
- Wavelength - Peak:
- 660nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- SMD
- Size / Dimension:
- 1.40mm L x 0.70mm W

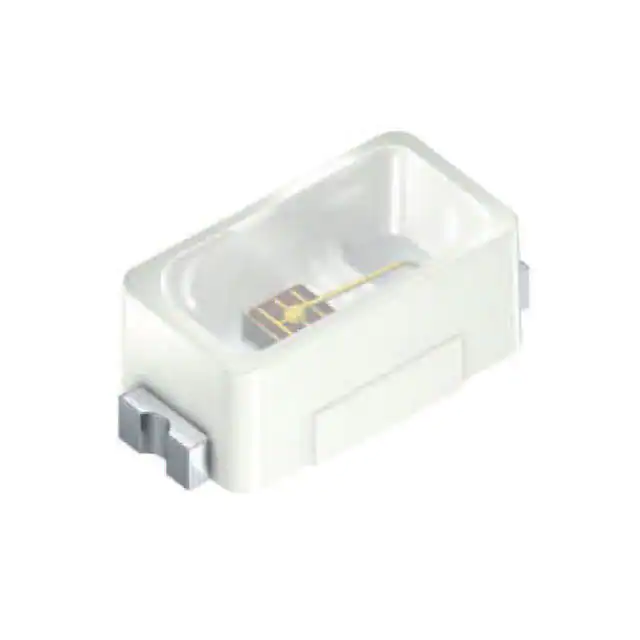

| Image |  |
 |
|
|
| Part Number | CH DELSS1.22 | CH DELSS1.22-S1T2-35-0-20-R18 | CH DELSS1.22-S2T2-34-0-20-R18-XX | CH DELSS1.22-N1P2-35-0-20-R18 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | FIREFLY® | FIREFLY | FIREFLY® | FIREFLY® |
| Package/Case | 2-SMD, Flat Leads | 2-SMD, Flat Leads | 2-SMD, Flat Leads | 2-SMD, Flat Leads |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
| Product Status | Active | Obsolete | Obsolete | Active |
| Color | Red | Red | Red | Red |
| Configuration | Standard | Standard | - | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | - | 315mcd | - | - |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.23mm x 0.60mm | 1.23mm x 0.60mm | 1.23mm x 0.60mm | 1.23mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 1.90V | 1.9V | 1.9V | 1.9V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 655nm | - | 645nm | 645nm |
| Wavelength - Peak | 660nm | 660nm | 660nm | 660nm |
| Features | - | - | - | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | SMD | SMD | SMD | SMD |
| Size / Dimension | 1.40mm L x 0.80mm W | 1.40mm L x 0.80mm W | 1.40mm L x 0.70mm W | 1.40mm L x 0.70mm W |
