Taoglas Limited CGGP.25.4.E.02
- Part No.:
- CGGP.25.4.E.02
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
CGGP.25.4.E.02.pdf
- Description:
- RF ANT 1.575/1.602GHZ CER PATCH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CGGP.25.4.E.02 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz, 1.602GHz
- Frequency Range:
- -
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 2
- VSWR:
- 1.8
- Return Loss:
- -
- Gain:
- 5.46dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- Pin
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.157" (4.00mm)
- Applications:
- GLONASS, GPS
| Image |  |
 |
 |
 |
.jpg) |

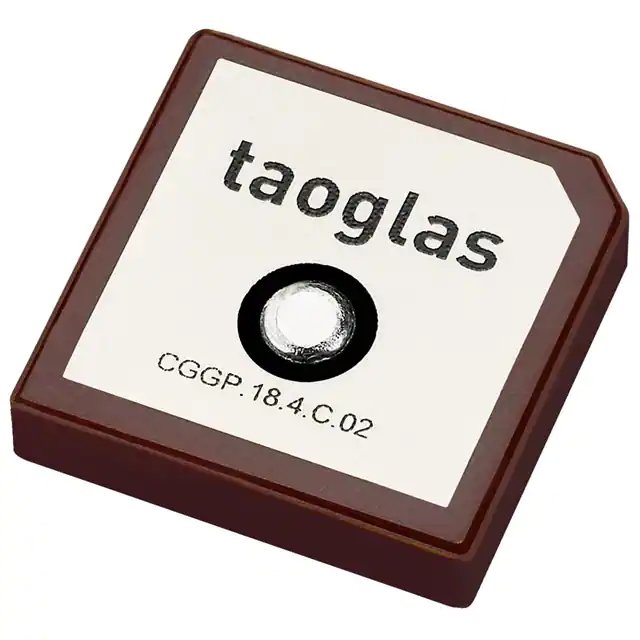

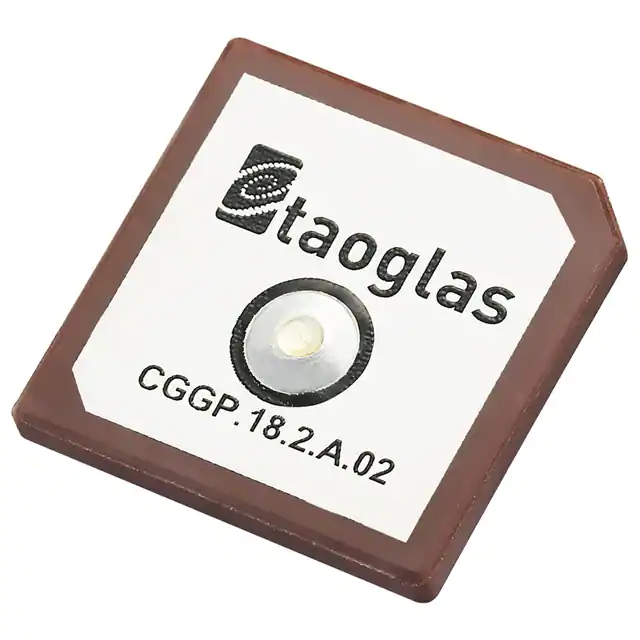

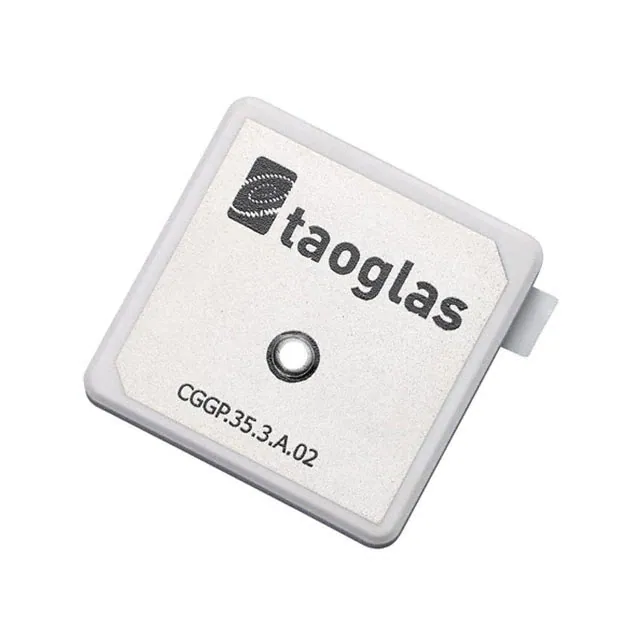

| Part Number | CGGP.25.4.A.02 | CGGP.25.4.E.02 | CGGP.18.2.A.02 | CGGP.18.4.C.02 | CGGP.35.3.A.02 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | - | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.6GHz | 1.575GHz, 1.602GHz | 1.575GHz, 1.602GHz | 1.575GHz, 1.602GHz | 1.575GHz, 1.6GHz |
| Frequency Range | 1.575GHz ~ 1.61GHz | - | 1.575GHz ~ 1.61GHz | 1.574GHz ~ 1.576GHz | 1.564GHz ~ 1.586GHz, 1.591GHz ~ 1.613GHz |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 1 | 2 | 2 | 2 | 2 |
| VSWR | 1.5 | 1.8 | - | 2.4 | 1.5 |
| Return Loss | - | - | -10dB | -7.6dB | - |
| Gain | 5dBi | 5.46dBi | 3.5dBi | 3dBi | 2dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | Pin | Pin | Pin | Pin | Pin |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Adhesive | Surface Mount | Surface Mount | Adhesive | Adhesive |
| Height (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.079" (2.00mm) | 0.177" (4.50mm) | 0.138" (3.50mm) |
| Applications | GLONASS, GPS | GLONASS, GPS | - | GLONASS, GPS | GLONASS, GPS |
