Taoglas Limited CGGBP.18.4.A.02
- Part No.:
- CGGBP.18.4.A.02
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
CGGBP.18.4.A.02.pdf
- Description:
- RF ANT 1.56/1.575GHZ CER PATCH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CGGBP.18.4.A.02 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.56GHz, 1.575GHz, 1.602GHz
- Frequency Range:
- 1.548GHz ~ 1.615GHz
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 3
- VSWR:
- 2.8, 2.8, 1.8
- Return Loss:
- -10dB
- Gain:
- 3dBi, 2dBi, 4dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- Pin
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 0.157" (4.00mm)
- Applications:
- Beidou, GLONASS, GPS
| Image |  |
 |
 |
 |
 |

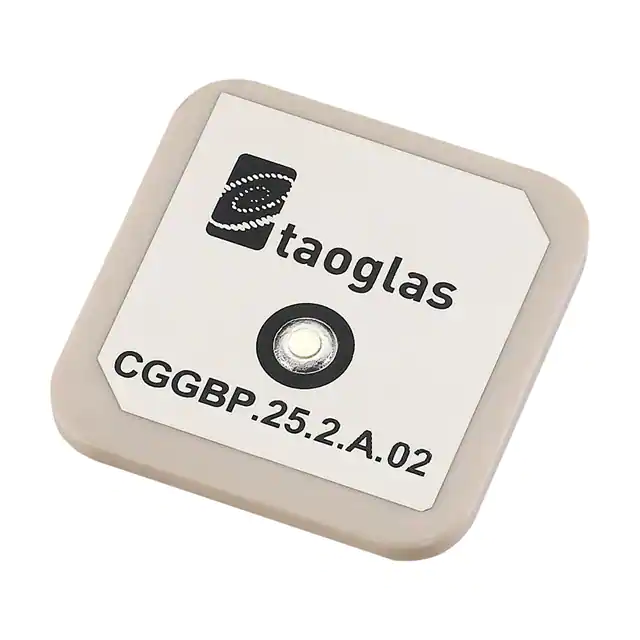

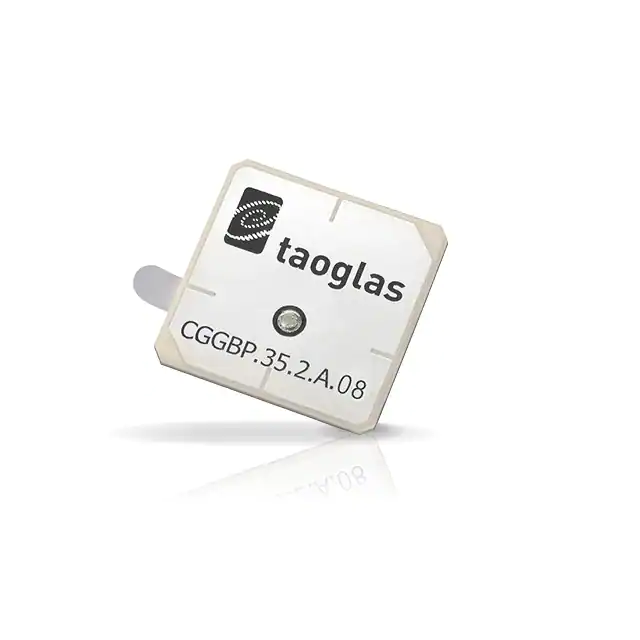

| Part Number | CGGBP.25.4.A.02 | CGGBP.18.4.A.02 | CGGBP.35.6.A.02 | CGGBP.35.2.A.08 | CGGBP.25.2.A.02 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.56GHz, 1.575GHz, 1.602GHz | 1.56GHz, 1.575GHz, 1.602GHz | 1.56GHz, 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz |
| Frequency Range | - | 1.548GHz ~ 1.615GHz | 1.533GHz ~ 1.589GHz, 1.547GHz ~ 1.603GHz, 1.574GHz ~ 1.63GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | 1.556GHz ~ 1.566GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 3 | 3 | 3 | 3 | 3 |
| VSWR | 2.5, 2.5, 1.8 | 2.8, 2.8, 1.8 | 2.5 | - | - |
| Return Loss | -34dB | -10dB | -10dB | - | -6dB |
| Gain | 4.96dBi, 4.99dBi, 5.48dBi | 3dBi, 2dBi, 4dBi | 4.5dBi, 3dBi, 4.5dBi | 3.45dBi, 3.68dBi, 4.87dBi | 3.25dBi, 4.35dBi, 3.44dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | Pin | Pin | Pin | Pin | Pin |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Adhesive | Adhesive | Surface Mount |
| Height (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.256" (6.50mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Applications | Beidou, GLONASS, GPS | Beidou, GLONASS, GPS | Beidou, Galileo, GLONASS, GPS | Beidou, Galileo, GLONASS, GPS | GLONASS, GNSS, GPS |
