TE Connectivity Laird CFSA69383P-30NF
- Part No.:
- CFSA69383P-30NF
- Manufacturer:
- TE Connectivity Laird
- Category:
- RF Antennas
- Package:
- Description:
- RF ANT 829MHZ/1.45GHZ FLAT PNL N
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CFSA69383P-30NF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Laird
- Series:
- CBRS
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Cellular, WiFi
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 829MHz, 1.45GHz, 2.75GHz
- Frequency Range:
- 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz
- Antenna Type:
- Flat Panel
- Number of Bands:
- 3
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- 5.8dBi
- Power - Max:
- 50 W
- Features:
- -
- Termination:
- N Type Female
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Panel Mount
- Height (Max):
- 0.299" (7.60mm)
- Applications:
- GSM, LTE, WiMax™
| Image |  |
 |
 |
 |
 |

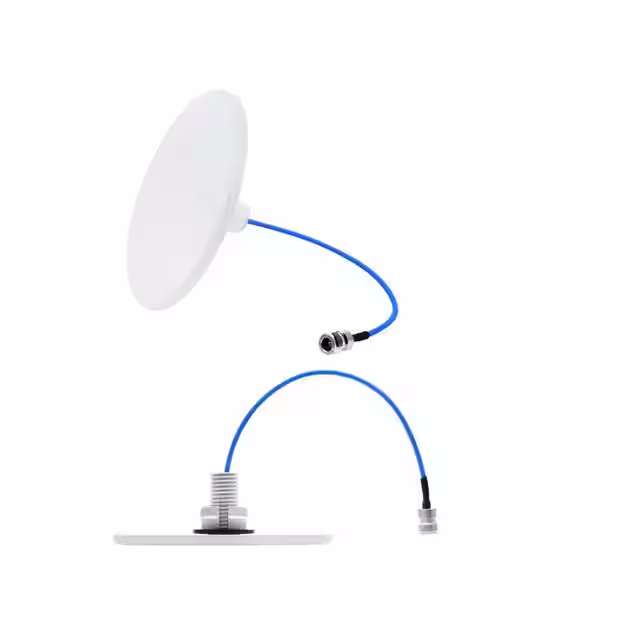

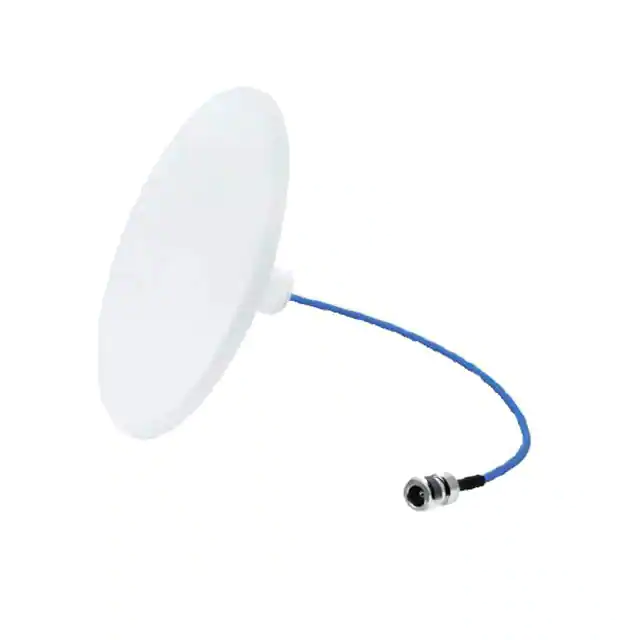

| Part Number | CFSA69383P-30NF | CFSA69383P1-30NF | CFSA69383P1-30D43F | CFSA69383P-B30NF | CFSA69383P-30D43F |
| Manufacturer | TE Connectivity Laird | TE Connectivity Laird | TE Connectivity Laird | TE Connectivity Laird | TE Connectivity Laird |
| Series | CBRS | - | - | - | CBRS |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular | Cellular, WiFi |
| Frequency Group | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.45GHz, 2.75GHz | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 752MHz, 859MHz, 885MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 829MHz, 1.45GHz, 2.75GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 4GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 4GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 890MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.8GHz ~ 4GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz |
| Antenna Type | Flat Panel | Flat Panel | Flat Panel | Flat Panel | Flat Panel |
| Number of Bands | 3 | 11 | 11 | 11 | 3 |
| VSWR | 2 | 1.5, 1.8, 2 | 1.5, 1.8, 2 | 1.5, 1.8, 2 | 2 |
| Return Loss | - | - | - | - | - |
| Gain | 5.8dBi | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 5.8dBi |
| Power - Max | 50 W | 50 W | 50 W | 50 W | 50 W |
| Features | - | Cable - 300mm | Cable - 300mm | Cable - 304.8mm | - |
| Termination | N Type Female | N Type Female | 4.3/10 - Female | N Type Female | N Type Female |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Ceiling Mount | Panel Mount |
| Height (Max) | 0.299" (7.60mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.299" (7.60mm) |
| Applications | GSM, LTE, WiMax™ | AWS, GSM, DCS, LTE, UMTS, WiMax™ | AWS, GSM, DCS, LTE, UMTS, WiMax™ | AWS, GSM, DCS, LTE, UMTS, WiMax™ | GSM, LTE, WiMax™ |
