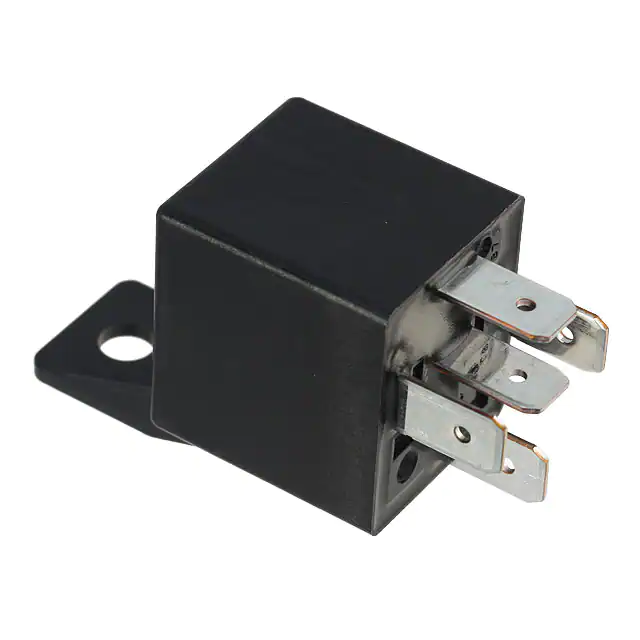

Panasonic Electric Works CB1-12V
- Part No.:
- CB1-12V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
CB1-12V.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 40A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CB1-12V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- CB
- Packaging:
- Bulk
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 117 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 40 A
- Switching Voltage:
- 14VDC - Nom
- Must Operate Voltage:
- 7 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 15 ms
- Release Time:
- 15 ms
- Features:
- Sealed - Fully
- Mounting Type:
- Socketable
- Termination Style:
- Plug In, Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
|
 |
|
 |
| Part Number | CB1-R-12V | CB1-12V | CB1AH-P-12V | CB1AH-P-24V | CB1-M-12V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | CB | CB | CB | CB | CB |
| Packaging | Bulk | Bulk | Bulk | Tube | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 134 mA | 117 mA | 117 mA | 58 mA | 117 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 24VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A | 40 A | 70 A | 20 A | 40 A |
| Switching Voltage | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom | 28VDC - Nom | 14VDC - Nom |
| Must Operate Voltage | 7 VDC | 7 VDC | 7 VDC | 14 VDC | 7 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC | 1.2 VDC | 2.4 VDC | 1.2 VDC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Features | Resistor, Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Mounting Type | Socketable | Socketable | Through Hole | Through Hole | Chassis Mount |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In, Quick Connect - 0.250" (6.3mm) | PC Pin | PC Pin | Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
